ADUM6210ARSZ - Analog Devices

Description: Analog Devices ADUM6210ARSZ PCB SMT 2-channel Digital Isolator, 265 Vrms, 20-Pin

Download ADUM6210ARSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

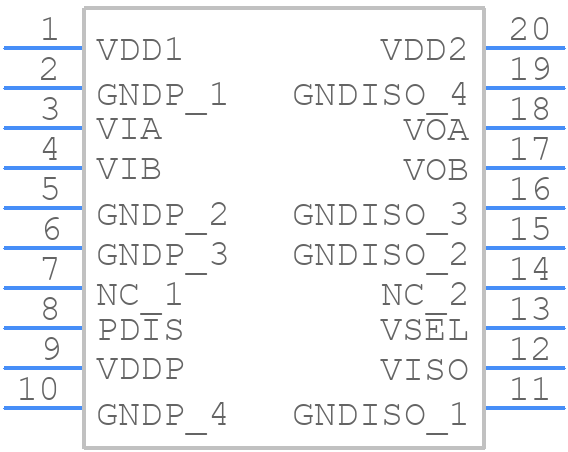

ADUM6210ARSZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM6210ARSZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-20 (SSOP)
click to zoom
3D Models
ADUM6210ARSZ - Analog Devices - 3D model - Small Outline Packages - RS-20 (SSOP)
click to zoom

ADUM6210ARSZ Details

  • Manufacturer Part Number:

    ADUM6210ARSZ

  • Source Url Status Check Date:

    2013-05-01 14:56:51.287

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    20

  • Manufacturer Package Code:

    RS-20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.99.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30

ADUM6210ARSZ Frequently Asked Questions (FAQs)

  • The ADUM6210ARSZ can support data rates up to 100 Mbps, making it suitable for high-speed digital isolation applications.
  • The ADUM6210ARSZ has a built-in power-up and power-down sequencing circuit that ensures the output is in a high-impedance state during power-up and power-down, preventing unwanted output transitions.
  • The typical propagation delay of the ADUM6210ARSZ is around 10 ns, making it suitable for high-speed digital isolation applications where timing is critical.
  • Yes, the ADUM6210ARSZ is rated for operation up to 125°C, making it suitable for high-temperature applications such as industrial control systems and automotive systems.
  • The ADUM6210ARSZ has a high common-mode transient immunity of 50 kV/μs, making it suitable for applications where high-voltage transients are present.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM6210ARSZ Overview

Use the download button to access the ADUM6210ARSZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM6, or try a keyword search, such as Other Interface ICs
