ADUM6210BRSZ - Analog Devices

Description: Dual-Channel Isolators with Integrated DC-to-DC Converter (2/0 Channel Directionality)

Download ADUM6210BRSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

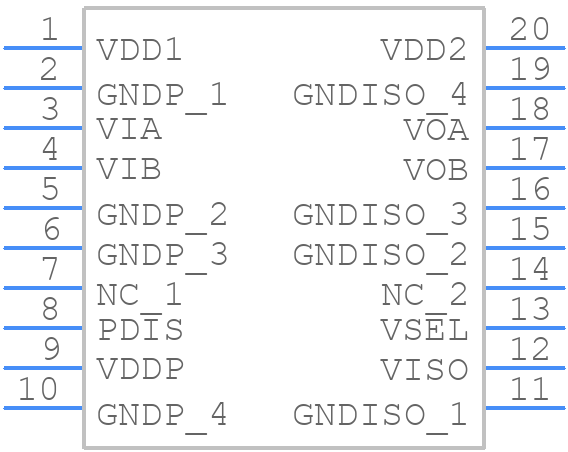

ADUM6210BRSZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

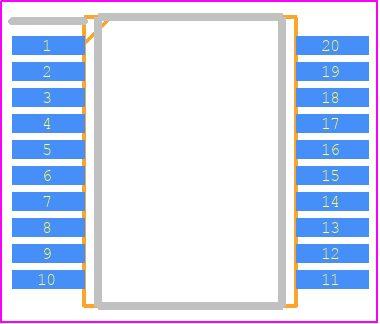

ADUM6210BRSZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-20_2023
click to zoom
3D Models
ADUM6210BRSZ - Analog Devices - 3D model - Small Outline Packages - RS-20_2023
click to zoom

ADUM6210BRSZ Details

  • Manufacturer Part Number:

    ADUM6210BRSZ

  • Source Url Status Check Date:

    2013-05-01 14:56:51.289

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    20

  • Manufacturer Package Code:

    RS-20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.99.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30

ADUM6210BRSZ Frequently Asked Questions (FAQs)

  • The ADUM6210BRSZ can support data rates up to 100 Mbps, but the actual data rate may be limited by the specific application and system design.
  • The ADUM6210BRSZ has a high common-mode transient immunity of 100 kV/μs and can reject common-mode noise up to 25 kV/μs, making it suitable for noisy industrial and automotive environments.
  • The ADUM6210BRSZ has an operating temperature range of -40°C to +125°C, making it suitable for use in harsh industrial and automotive environments.
  • The ADUM6210BRSZ has a built-in power-up and power-down sequencing circuit that ensures the isolator is powered up and down in a controlled manner, preventing damage to the device or the system.
  • Yes, the ADUM6210BRSZ is designed to meet the requirements of safety-critical applications, such as IEC 60601-1 and IEC 61508, and has been certified by various safety agencies, including UL and VDE.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM6210BRSZ Overview

Use the download button to access the ADUM6210BRSZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM6, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
