ADUM6211BRSZ - Analog Devices

Description: Analog Devices ADUM6211BRSZ PCB SMT 2-channel Digital Isolator, 3750 V, 20-Pin SSOP

Download ADUM6211BRSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

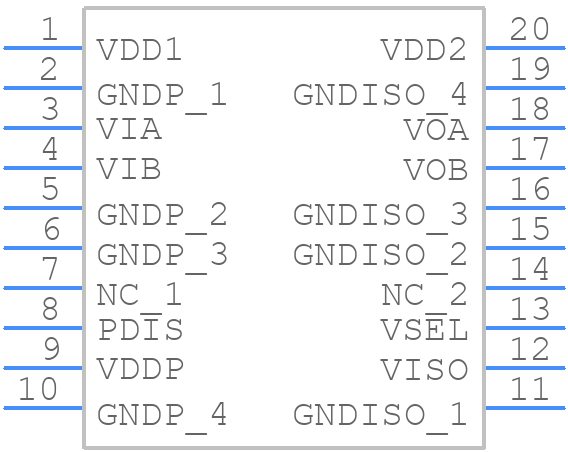

ADUM6211BRSZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM6211BRSZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-20 (SSOP)
click to zoom
3D Models
ADUM6211BRSZ - Analog Devices - 3D model - Small Outline Packages - RS-20 (SSOP)
click to zoom

ADUM6211BRSZ Details

  • Manufacturer Part Number:

    ADUM6211BRSZ

  • Source Url Status Check Date:

    2013-05-01 14:56:51.295

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    20

  • Manufacturer Package Code:

    RS-20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.99.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30

ADUM6211BRSZ Frequently Asked Questions (FAQs)

  • The ADUM6211BRSZ can support data rates up to 100 Mbps, making it suitable for high-speed digital isolation applications.
  • The ADUM6211BRSZ has a built-in power-up and power-down sequencing circuit that ensures the output is in a high-impedance state during power-up and power-down, preventing unwanted output transitions.
  • The typical propagation delay of the ADUM6211BRSZ is around 10 ns, making it suitable for applications that require fast data transfer.
  • Yes, the ADUM6211BRSZ is designed to operate in harsh industrial environments, with a wide operating temperature range of -40°C to +125°C and high immunity to electromagnetic interference (EMI).
  • The ADUM6211BRSZ has a high common-mode transient immunity of 50 kV/μs, making it suitable for applications where high-voltage transients are present.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM6211BRSZ Overview

Use the download button to access the ADUM6211BRSZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM6, or try a keyword search, such as Other Interface ICs
