ADUM6211CRSZ-RL7 - Analog Devices

ADUM6211CRSZ-RL7 Frequently Asked Questions (FAQs)

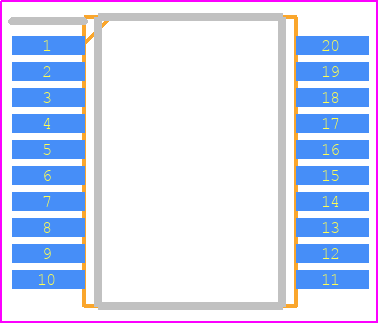

• What is the recommended PCB layout for optimal performance of the ADUM6211CRSZ-RL7?
  A good PCB layout for the ADUM6211CRSZ-RL7 should minimize the distance between the input and output pins, use a solid ground plane, and avoid routing high-frequency signals near the isolation barrier. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended PCB layout and land pattern that should be followed.
• How do I ensure reliable operation of the ADUM6211CRSZ-RL7 in high-temperature environments?
  To ensure reliable operation of the ADUM6211CRSZ-RL7 in high-temperature environments, it is essential to follow proper thermal management practices. This includes providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. The device should be operated within its specified temperature range, and the junction temperature should be kept below 150°C.
• What are the ESD protection considerations for the ADUM6211CRSZ-RL7?
  The ADUM6211CRSZ-RL7 has built-in ESD protection, but it is still important to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding oneself before handling the device, and avoiding direct contact with the device pins. Additionally, the device should be powered up and down slowly to prevent voltage spikes that can damage the device.
• How do I troubleshoot issues with the ADUM6211CRSZ-RL7, such as output voltage droop or incorrect output voltage?
  To troubleshoot issues with the ADUM6211CRSZ-RL7, start by verifying that the input voltage and current are within the specified range. Check the output voltage and current using an oscilloscope or multimeter, and ensure that the output is not overloaded. Verify that the device is properly soldered and that there are no shorts or opens on the PCB. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines.
• Can I use the ADUM6211CRSZ-RL7 in a redundant or fault-tolerant system?
  Yes, the ADUM6211CRSZ-RL7 can be used in a redundant or fault-tolerant system. The device has a built-in undervoltage lockout (UVLO) feature that ensures the output is disabled when the input voltage is below a certain threshold. This feature can be used to detect faults and switch to a redundant power supply. Additionally, the device's isolation barrier provides electrical isolation between the input and output, which can help to prevent faults from propagating between the two sides.
