ADUM6211CRSZ - Analog Devices

Description: Analog Devices ADUM6211CRSZ PCB SMT 2-channel Digital Isolator, 3750 Vrms, 20-Pin SSOP

Download ADUM6211CRSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

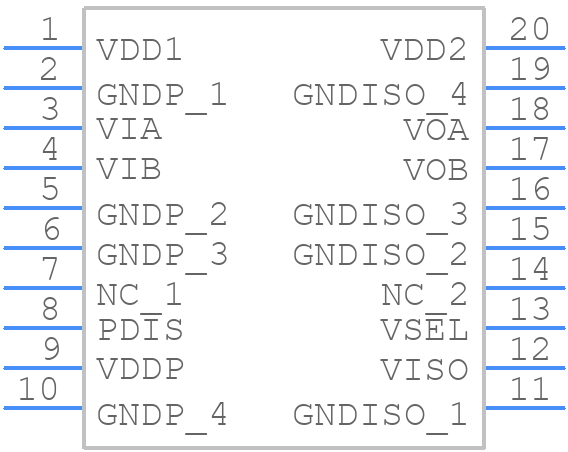

ADUM6211CRSZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM6211CRSZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-20 (SSOP)
click to zoom
3D Models
ADUM6211CRSZ - Analog Devices - 3D model - Small Outline Packages - RS-20 (SSOP)
click to zoom

ADUM6211CRSZ Details

  • Manufacturer Part Number:

    ADUM6211CRSZ

  • Source Url Status Check Date:

    2013-05-01 14:56:51.297

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    20

  • Manufacturer Package Code:

    RS-20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.99.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30

ADUM6211CRSZ Frequently Asked Questions (FAQs)

  • The ADUM6211CRSZ can support data rates up to 100 Mbps.
  • Yes, the ADUM6211CRSZ is designed for use in isolated power supplies and can withstand high voltage isolation up to 5 kV rms.
  • The ADUM6211CRSZ has a high common-mode transient immunity of 100 kV/μs, making it suitable for use in noisy environments.
  • Yes, the ADUM6211CRSZ is compatible with industrial communication protocols such as RS-485, RS-422, and CAN.
  • The ADUM6211CRSZ has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications.
