ADUM6212BRSZ-RL7 - Analog Devices

Description: 2.7V ~ 5.5V General Purpose Digital Isolator 3750Vrms 2 Channel 25Mbps 25kV/µs CMTI 20-SSOP (0.209", 5.30mm Width)

Download ADUM6212BRSZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

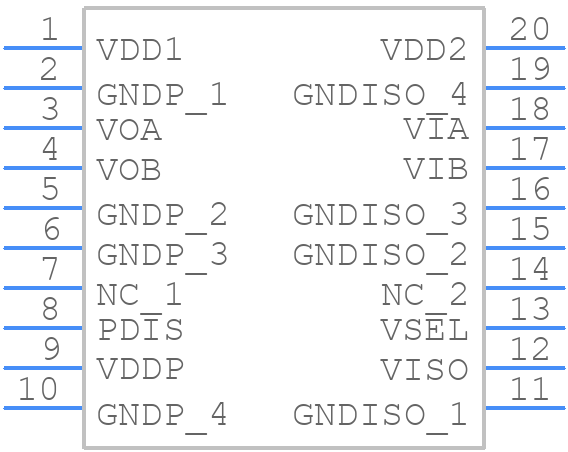

ADUM6212BRSZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

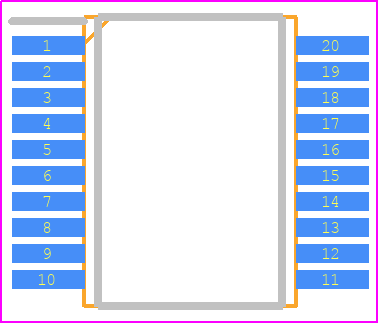

ADUM6212BRSZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 20-Lead Shrink Small Outline Package [SSOP] (RS-20)-1
click to zoom
3D Models
ADUM6212BRSZ-RL7 - Analog Devices - 3D model - Small Outline Packages - 20-Lead Shrink Small Outline Package [SSOP] (RS-20)-1
click to zoom

ADUM6212BRSZ-RL7 Details

  • Manufacturer Part Number:

    ADUM6212BRSZ-RL7

  • Source Url Status Check Date:

    2013-05-01 14:56:51.3

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    20

  • Manufacturer Package Code:

    RS-20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.99.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30

ADUM6212BRSZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM6212BRSZ-RL7 should minimize the distance between the input and output pins, use a solid ground plane, and avoid routing high-frequency signals near the isolation barrier. Additionally, it's recommended to use a symmetrical layout and to keep the input and output circuits separate to minimize noise coupling.
  • To ensure reliable operation of the ADUM6212BRSZ-RL7 in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. Additionally, the device should be operated within its specified temperature range (-40°C to 125°C) and derated accordingly.
  • Common failure modes of the ADUM6212BRSZ-RL7 include overvoltage, overcurrent, and overheating. These can be mitigated by using proper voltage and current limiting circuits, ensuring adequate heat sinking, and following proper PCB layout and design practices. Additionally, using a fuse or a current-limiting resistor in series with the input can help prevent overcurrent conditions.
  • To troubleshoot issues with the ADUM6212BRSZ-RL7, start by verifying the input voltage and current, and ensuring that the device is properly powered. Check the output voltage and current, and verify that the output is not overloaded. Use an oscilloscope to check for noise or oscillations on the output, and ensure that the PCB layout is correct and follows the recommended layout guidelines.
  • Yes, the ADUM6212BRSZ-RL7 is designed for high-isolation applications and can withstand up to 5 kV rms of isolation voltage. However, it's essential to follow proper design and layout practices to ensure that the device can maintain its isolation rating in the application.
