ADUM6212BRSZ - Analog Devices

Description: 2.7V ~ 5.5V General Purpose Digital Isolator 3750Vrms 2 Channel 25Mbps 25kV/µs CMTI 20-SSOP (0.209", 5.30mm Width)

Download ADUM6212BRSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

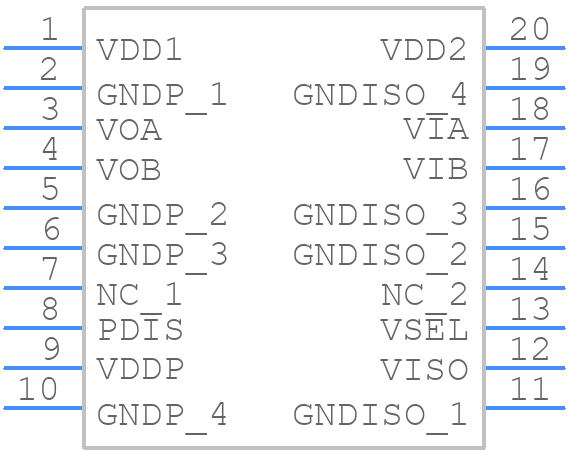

ADUM6212BRSZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM6212BRSZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 20-Lead Shrink Small Outline Package [SSOP] (RS-20)-1
click to zoom
3D Models
ADUM6212BRSZ - Analog Devices - 3D model - Small Outline Packages - 20-Lead Shrink Small Outline Package [SSOP] (RS-20)-1
click to zoom

ADUM6212BRSZ Details

  • Manufacturer Part Number:

    ADUM6212BRSZ

  • Source Url Status Check Date:

    2013-05-01 14:56:51.299

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    20

  • Manufacturer Package Code:

    RS-20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.99.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30
