ADUM6400CRWZ-RL - Analog Devices

Description: Quad-Channel Isolators with Integrated DC-to-DC Converter

Download ADUM6400CRWZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

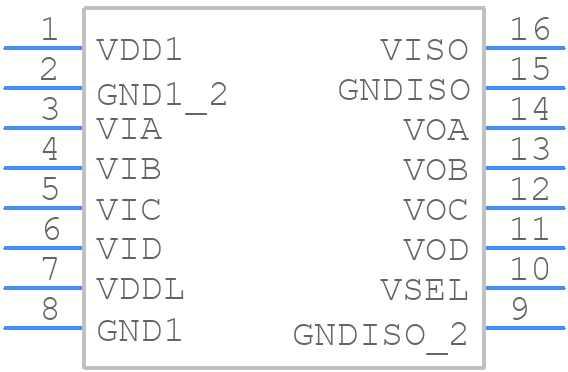

ADUM6400CRWZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints

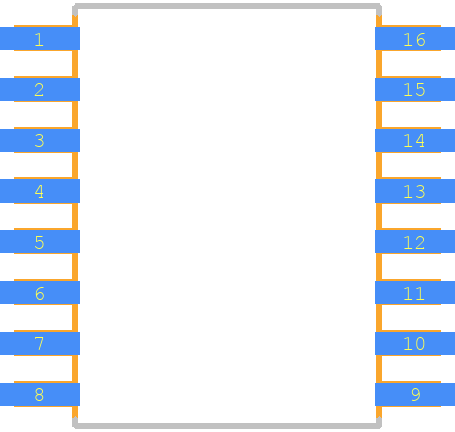

ADUM6400CRWZ-RL - Analog Devices PCB footprint - Other - Other - SOIC127P1032X265-16N
click to zoom
3D Models
ADUM6400CRWZ-RL - Analog Devices - 3D model - Other - SOIC127P1032X265-16N
click to zoom

ADUM6400CRWZ-RL Details

  • Manufacturer Part Number:

    ADUM6400CRWZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.99.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADUM6400CRWZ-RL Frequently Asked Questions (FAQs)

  • The ADUM6400CRWZ-RL has an operating temperature range of -40°C to 125°C, and a storage temperature range of -40°C to 150°C.
  • To ensure reliable operation in high-noise environments, it is recommended to use proper PCB layout and grounding techniques, such as separating the input and output circuits, using a ground plane, and minimizing loop areas. Additionally, using shielding and filtering can help to reduce noise coupling.
  • The recommended power-up sequence for the ADUM6400CRWZ-RL is to power up the VDD1 and VDD2 supplies simultaneously, and then apply the input signals. This helps to ensure proper operation and prevent latch-up.
  • Yes, the ADUM6400CRWZ-RL can be used in redundant or fault-tolerant systems. Its dual-channel architecture and high common-mode transient immunity make it suitable for applications that require high reliability and fault tolerance.
  • To troubleshoot issues with the ADUM6400CRWZ-RL, start by checking the power supplies, input signals, and output signals. Verify that the device is properly powered and that the input signals are within the specified range. Use an oscilloscope to check for signal integrity and noise. If the issue persists, consult the datasheet and application notes for guidance, or contact Analog Devices Inc. support.
