ADUM6403ARIZ-RL - Analog Devices

Description: General Purpose Digital Isolator 5000Vrms 4 Channel 1Mbps 25kV/µs CMTI 16-SOIC (0.295", 7.50mm Width) , 3V ~ 5.5V , -40°C ~ 105°C

Download ADUM6403ARIZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

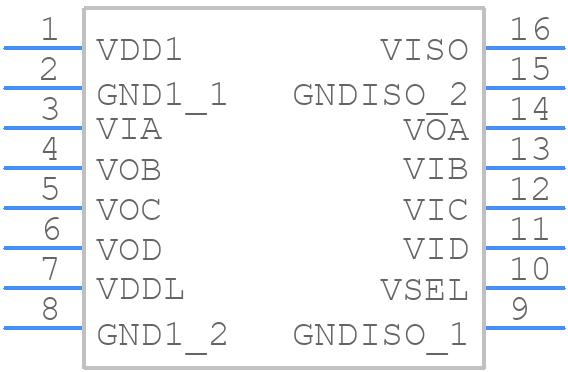

ADUM6403ARIZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM6403ARIZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RI-16-2
click to zoom
3D Models
ADUM6403ARIZ-RL - Analog Devices - 3D model - Small Outline Packages - RI-16-2
click to zoom

ADUM6403ARIZ-RL Details

  • Manufacturer Part Number:

    ADUM6403ARIZ-RL

  • Source Url Status Check Date:

    2013-05-01 14:56:51.33

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RI-16-2

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.99.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADUM6403ARIZ-RL Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ADUM6403ARIZ-RL is -40°C to 125°C.
  • To ensure reliable operation in high-noise environments, it is recommended to use proper PCB layout techniques, such as separating the digital and analog grounds, using shielding, and minimizing loop areas. Additionally, consider using noise-filtering components, such as capacitors and resistors, to reduce electromagnetic interference (EMI).
  • The recommended power-up sequence for the ADUM6403ARIZ-RL is to power up the VDD1 and VDD2 supplies simultaneously, followed by the VISO supply. This ensures that the internal voltage regulators are properly initialized and that the device operates correctly.
  • To troubleshoot issues with the ADUM6403ARIZ-RL, start by verifying that the power supplies are within the recommended operating range and that the device is properly configured. Check for any signs of physical damage or contamination, and ensure that the PCB layout is correct. Use oscilloscopes or logic analyzers to monitor the device's signals and identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • The ADUM6403ARIZ-RL is a general-purpose isolator and is not specifically designed for safety-critical applications. However, it can be used in such applications if proper design and testing procedures are followed to ensure compliance with relevant safety standards. Consult with Analog Devices Inc. and relevant industry experts to determine the suitability of the device for your specific application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM6403ARIZ-RL Overview

Use the download button to access the ADUM6403ARIZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM6, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
