ADUM6403ARWZ-RL - Analog Devices

Description: Quad-Channel Isolators with Integrated DC-to-DC Converter

Download ADUM6403ARWZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

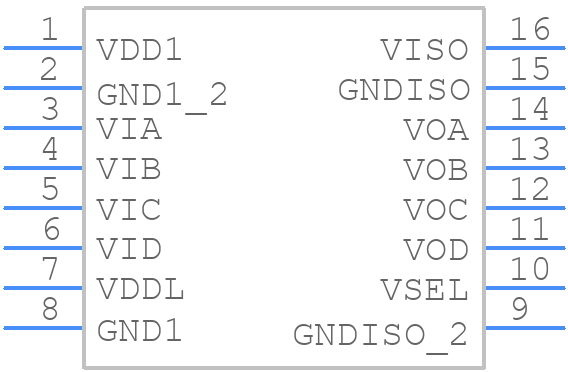

ADUM6403ARWZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM6403ARWZ-RL - Analog Devices PCB footprint - Other - Other - SOIC127P1032X265-16N
click to zoom
3D Models
ADUM6403ARWZ-RL - Analog Devices - 3D model - Other - SOIC127P1032X265-16N
click to zoom

ADUM6403ARWZ-RL Details

  • Manufacturer Part Number:

    ADUM6403ARWZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.99.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADUM6403ARWZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM6403ARWZ-RL should minimize the distance between the input and output pins, use a solid ground plane, and avoid routing high-frequency signals near the isolation barrier. Additionally, it's recommended to use a symmetrical layout to minimize electromagnetic interference (EMI).
  • To ensure reliable operation of the ADUM6403ARWZ-RL in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal gradients. Additionally, the device should be operated within its specified temperature range (-40°C to 125°C).
  • The ADUM6403ARWZ-RL can handle high common-mode voltages up to 1 kV peak. However, it's essential to ensure that the common-mode voltage does not exceed the maximum rating, as this can lead to reduced isolation performance or even damage to the device. Additionally, the system designer should consider the impact of common-mode voltage on the overall system performance and safety.
  • To troubleshoot issues with the ADUM6403ARWZ-RL, start by verifying that the device is properly powered and that the input and output signals are within the specified ranges. Check for any signs of physical damage, such as overheating or mechanical stress. Use oscilloscopes or logic analyzers to monitor the input and output signals, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • The ADUM6403ARWZ-RL is designed to provide high isolation voltage up to 5 kV rms. However, it's essential to ensure that the system designer follows proper safety guidelines and regulations, such as IEC 60601-1, to prevent electrical shock or other hazards. Additionally, the system designer should consider the impact of high isolation voltage on the overall system performance and reliability.
