ADUM6403CRWZ-RL - Analog Devices

Description: Quad-Channel Isolators with Integrated DC-to-DC Converter

Download ADUM6403CRWZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

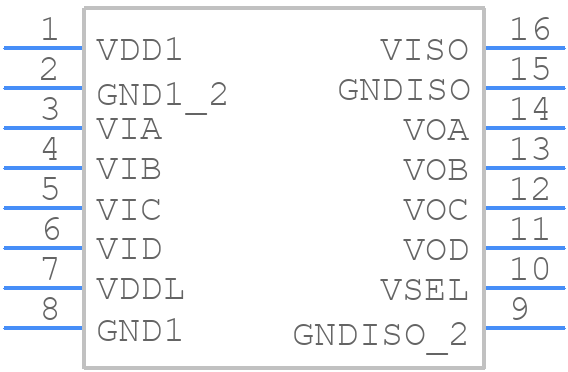

ADUM6403CRWZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints

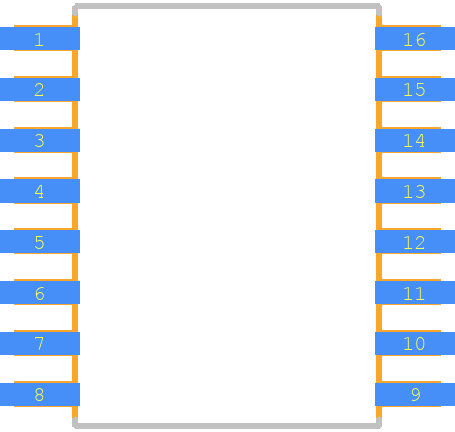

ADUM6403CRWZ-RL - Analog Devices PCB footprint - Other - Other - SOIC127P1032X265-16N
click to zoom
3D Models
ADUM6403CRWZ-RL - Analog Devices - 3D model - Other - SOIC127P1032X265-16N
click to zoom

ADUM6403CRWZ-RL Details

  • Manufacturer Part Number:

    ADUM6403CRWZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.99.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADUM6403CRWZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM6403CRWZ-RL should minimize the distance between the input and output pins, use a solid ground plane, and avoid running high-frequency signals near the isolation barrier. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended PCB layout and land pattern that should be followed.
  • To ensure reliable operation of the ADUM6403CRWZ-RL in high-temperature environments, it is essential to follow proper thermal management practices. This includes providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. The device should be operated within its specified temperature range, and the junction temperature should be kept below 150°C.
  • The ADUM6403CRWZ-RL has built-in ESD protection, but it is still important to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding oneself before handling the device, and avoiding direct contact with the device pins. Additionally, the device should be powered down during assembly and testing to prevent damage from ESD events.
  • To troubleshoot issues with the ADUM6403CRWZ-RL, start by verifying that the device is properly powered and configured. Check the input and output voltage levels, and ensure that the device is operating within its specified temperature range. Use a logic analyzer or oscilloscope to verify the signal integrity and timing. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines, and contact Analog Devices support if necessary.
  • The ADUM6403CRWZ-RL is a safety-certified device, but it is still important to follow proper safety guidelines when using it in medical or industrial applications. This includes ensuring that the device is used within its specified ratings and approvals, following proper electrical safety practices, and providing adequate protection against electrical shock and other hazards. Additionally, the device should be designed into a system that meets relevant safety standards, such as IEC 60601 or IEC 61010.
