ADUM6404ARWZ-RL - Analog Devices

Description: Quad-Channel Isolators with Integrated DC-to-DC Converter

Download ADUM6404ARWZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

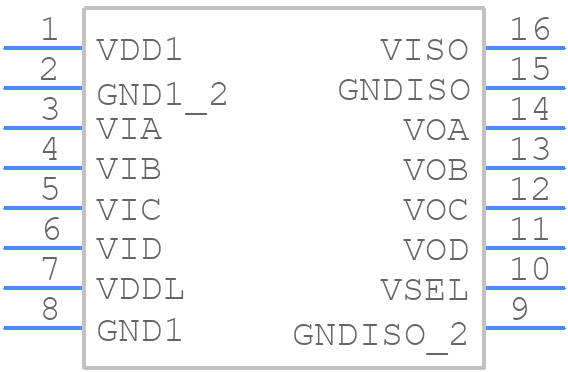

ADUM6404ARWZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints

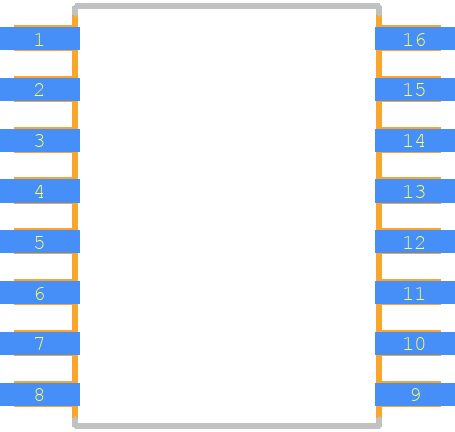

ADUM6404ARWZ-RL - Analog Devices PCB footprint - Other - Other - SOIC127P1032X265-16N
click to zoom
3D Models
ADUM6404ARWZ-RL - Analog Devices - 3D model - Other - SOIC127P1032X265-16N
click to zoom

ADUM6404ARWZ-RL Details

  • Manufacturer Part Number:

    ADUM6404ARWZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.99.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADUM6404ARWZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM6404ARWZ-RL should minimize the distance between the input and output pins, use a solid ground plane, and avoid running high-frequency signals near the isolation barrier. Additionally, it's recommended to use a symmetrical layout to reduce electromagnetic interference (EMI).
  • To ensure reliable operation of the ADUM6404ARWZ-RL in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal gradients. Additionally, the device should be operated within its specified temperature range (-40°C to 125°C).
  • The ADUM6404ARWZ-RL is designed to handle high common-mode voltages up to 1 kV peak. However, it's essential to ensure that the common-mode voltage does not exceed the maximum rating, as this can lead to reduced isolation performance or even device failure. Additionally, the system designer should consider the impact of common-mode voltage on the overall system noise immunity and electromagnetic compatibility (EMC).
  • To troubleshoot issues with the ADUM6404ARWZ-RL, start by verifying that the device is properly powered and that the input and output signals are within the specified voltage ranges. Check for any signs of physical damage, such as cracks or burn marks, and ensure that the device is properly soldered to the PCB. Use oscilloscopes or logic analyzers to monitor the input and output signals, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • The ADUM6404ARWZ-RL is designed to provide a high isolation voltage of up to 5 kV rms. However, it's essential to ensure that the system designer understands the implications of using a high-isolation voltage device, including the need for proper creepage and clearance distances, and the potential impact on system-level safety and regulatory compliance.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

ADUM6404ARWZ-RL Overview

Use the download button to access the ADUM6404ARWZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM6, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
