ADUM6410BRSZ-RL7 - Analog Devices

Description: General Purpose Digital Isolator 3750Vrms 4 Channel 150Mbps 75kV/µs CMTI 24-SSOP (0.209", 5.30mm Width)

Download ADUM6410BRSZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

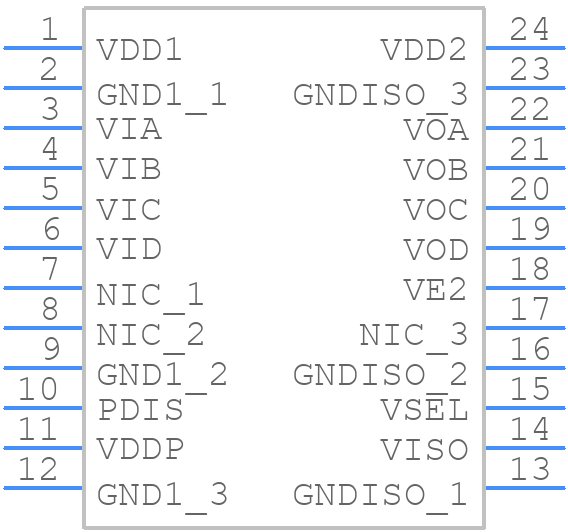

ADUM6410BRSZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM6410BRSZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-24_2025-1.1
click to zoom
3D Models
ADUM6410BRSZ-RL7 - Analog Devices - 3D model - Small Outline Packages - RS-24_2025-1.1
click to zoom

ADUM6410BRSZ-RL7 Details

  • Manufacturer Part Number:

    ADUM6410BRSZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    RS-24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.98.60

  • Date Of Intro:

    2016-07-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    DIGITAL ISOLATOR

ADUM6410BRSZ-RL7 Frequently Asked Questions (FAQs)

  • The ADUM6410BRSZ-RL7 can support data rates up to 150 Mbps, making it suitable for high-speed digital isolation applications.
  • The ADUM6410BRSZ-RL7 has a high common-mode transient immunity of 50 kV/μs, making it robust against noise and transients. It also has a high noise immunity of 100 kV/μs, ensuring reliable operation in noisy environments.
  • The typical power consumption of the ADUM6410BRSZ-RL7 is around 1.5 mA per channel, making it a low-power solution for digital isolation applications.
  • Yes, the ADUM6410BRSZ-RL7 is rated for operation over a wide temperature range of -40°C to +125°C, making it suitable for use in high-temperature environments.
  • The typical propagation delay of the ADUM6410BRSZ-RL7 is around 10 ns, making it suitable for high-speed digital isolation applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM6410BRSZ-RL7 Overview

Use the download button to access the ADUM6410BRSZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM6, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
