ADUM6411BRSZ - Analog Devices

Description: General Purpose Digital Isolator 3750Vrms 4 Channel 150Mbps 75kV/µs CMTI 24-SSOP (0.209", 5.30mm Width) ,-40°C ~ 105°C

Download ADUM6411BRSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

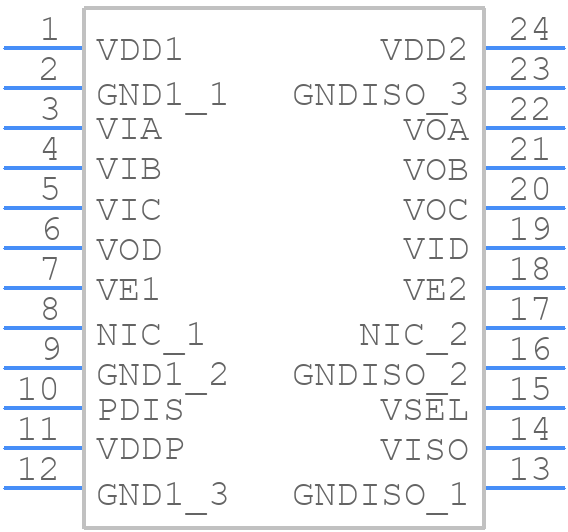

ADUM6411BRSZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM6411BRSZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 24-Lead Shrink Small Outline Package [SSOP] (RS-24)_2025-1.5
click to zoom
3D Models
ADUM6411BRSZ - Analog Devices - 3D model - Small Outline Packages - 24-Lead Shrink Small Outline Package [SSOP] (RS-24)_2025-1.5
click to zoom

ADUM6411BRSZ Details

  • Manufacturer Part Number:

    ADUM6411BRSZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    RS-24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.98.60

  • Date Of Intro:

    2016-07-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    DIGITAL ISOLATOR

ADUM6411BRSZ Frequently Asked Questions (FAQs)

  • The ADUM6411BRSZ can support data rates up to 150 Mbps.
  • Yes, the ADUM6411BRSZ can be used in a multi-point configuration, but it is recommended to use a repeater or a hub to ensure signal integrity.
  • The ADUM6411BRSZ operates over a temperature range of -40°C to +125°C.
  • Yes, the ADUM6411BRSZ is pin-compatible with other digital isolators from Analog Devices, such as the ADUM6401 and ADUM6412.
  • Yes, the ADUM6411BRSZ can be used in high-voltage applications up to 5 kV rms.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM6411BRSZ Overview

Use the download button to access the ADUM6411BRSZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM6, or try a keyword search, such as Other Interface ICs
