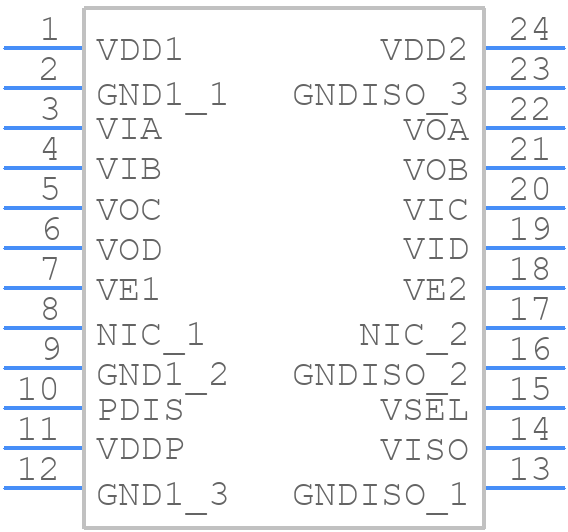

ADUM6412BRSZ-RL7 - Analog Devices

ADUM6412BRSZ-RL7 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the ADUM6412BRSZ-RL7?
  A good PCB layout for the ADUM6412BRSZ-RL7 should minimize the distance between the input and output pins, use a solid ground plane, and avoid routing high-frequency signals near the isolation barrier. Additionally, it's recommended to use a symmetrical layout and to keep the input and output circuits separate to minimize noise coupling.
• How do I ensure reliable operation of the ADUM6412BRSZ-RL7 in high-temperature environments?
  To ensure reliable operation of the ADUM6412BRSZ-RL7 in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. Additionally, the device should be operated within its specified temperature range (-40°C to 125°C) and derated accordingly.
• What are the common failure modes of the ADUM6412BRSZ-RL7 and how can they be mitigated?
  Common failure modes of the ADUM6412BRSZ-RL7 include overvoltage, overcurrent, and overheating. These can be mitigated by using proper voltage and current limiting circuits, ensuring adequate heat sinking, and following proper PCB layout and design practices. Additionally, using a fuse or a current-limiting resistor in series with the input can help prevent overcurrent conditions.
• How do I troubleshoot issues with the ADUM6412BRSZ-RL7, such as output voltage droop or input voltage sag?
  To troubleshoot issues with the ADUM6412BRSZ-RL7, start by verifying the input voltage and current, and checking for any signs of overheating or physical damage. Use an oscilloscope to measure the input and output waveforms, and check for any noise or distortion. Also, ensure that the device is properly soldered and that there are no issues with the PCB layout or design.
• Can the ADUM6412BRSZ-RL7 be used in applications requiring high isolation voltage?
  Yes, the ADUM6412BRSZ-RL7 is designed to provide high isolation voltage, up to 5 kV rms, making it suitable for applications requiring high isolation, such as in medical devices, industrial control systems, and automotive systems.
