ADUM6412BRSZ - Analog Devices

Description: Robust 3.75 kV rms Quad-Channel Isolator with Integrated DC-to-DC Converter & 2 Reverse Channels

Download ADUM6412BRSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

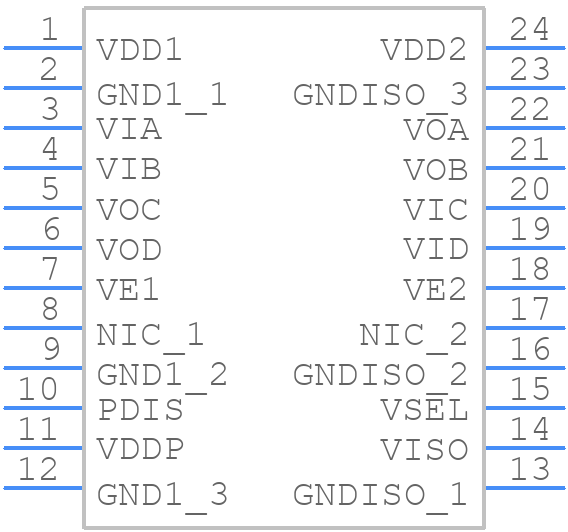

ADUM6412BRSZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

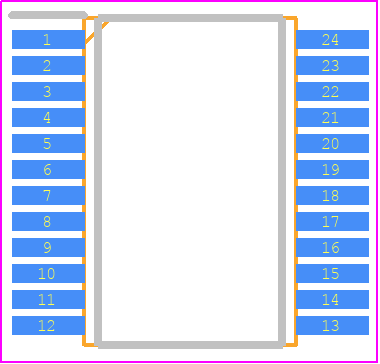

ADUM6412BRSZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-24 (SSOP)
click to zoom
3D Models
ADUM6412BRSZ - Analog Devices - 3D model - Small Outline Packages - RS-24 (SSOP)
click to zoom

ADUM6412BRSZ Details

  • Manufacturer Part Number:

    ADUM6412BRSZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    RS-24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.98.60

  • Date Of Intro:

    2016-07-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    DIGITAL ISOLATOR

ADUM6412BRSZ Frequently Asked Questions (FAQs)

  • The ADUM6412BRSZ can support data rates up to 150 Mbps, making it suitable for high-speed digital isolators.
  • The ADUM6412BRSZ has a built-in power-up and power-down sequencing circuit that ensures the output is in a high-impedance state during power-up and power-down, preventing unwanted output transitions.
  • The typical propagation delay of the ADUM6412BRSZ is around 10 ns, making it suitable for high-speed digital isolation applications.
  • Yes, the ADUM6412BRSZ is rated for operation from -40°C to +125°C, making it suitable for use in high-temperature environments.
  • The ADUM6412BRSZ has a high common-mode transient immunity of 50 kV/μs, making it suitable for use in noisy environments.
