ADUM6420ABRNZ3 - Analog Devices

Description: Quad-Channel Isolators with Integrated DC-to-DC Converter (4:0 directionality)

Download ADUM6420ABRNZ3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

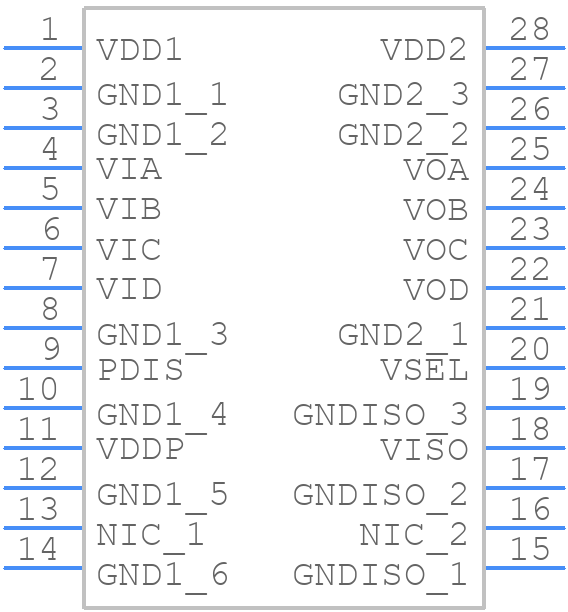

ADUM6420ABRNZ3 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM6420ABRNZ3 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 28-Lead Standard Small Outline, Wide Body, with Finer Pitch [SOIC_W_FP]
click to zoom
3D Models
ADUM6420ABRNZ3 - Analog Devices - 3D model - Small Outline Packages - 28-Lead Standard Small Outline, Wide Body, with Finer Pitch [SOIC_W_FP]
click to zoom

ADUM6420ABRNZ3 Details

  • Manufacturer Part Number:

    ADUM6420ABRNZ3

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RN-28-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.99.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

ADUM6420ABRNZ3 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM6420ABRNZ involves keeping the digital and analog grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliable operation of the ADUM6420ABRNZ in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources.
  • The ADUM6420ABRNZ has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding oneself before handling the device, and avoiding direct contact with the device pins.
  • No, the ADUM6420ABRNZ is designed for isolated power supply applications and should not be used in non-isolated designs. Using it in a non-isolated design can compromise the safety and reliability of the system.
  • The recommended input voltage range for the ADUM6420ABRNZ is 3.15 V to 5.5 V. Operating the device outside of this range can affect its performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM6420ABRNZ3 Overview

Use the download button to access the ADUM6420ABRNZ3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM6, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
