ADUM6420ABRNZ5-RL - Analog Devices

Description: Quad-Channel Isolators with Integrated DC-to-DC Converter (4:0 directionality)

Download ADUM6420ABRNZ5-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

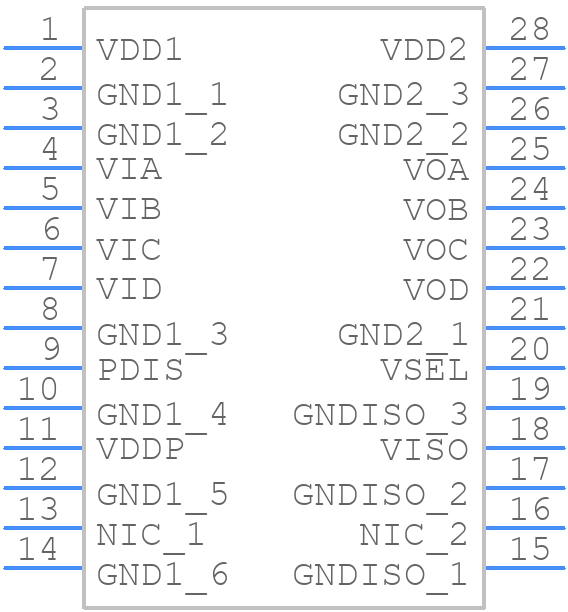

Symbol
ADUM6420ABRNZ5-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM6420ABRNZ5-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 28-Lead Standard Small Outline, Wide Body, with Finer Pitch [SOIC_W_FP]
click to zoom
3D Models
ADUM6420ABRNZ5-RL - Analog Devices - 3D model - Small Outline Packages - 28-Lead Standard Small Outline, Wide Body, with Finer Pitch [SOIC_W_FP]
click to zoom

ADUM6420ABRNZ5-RL Details

  • Manufacturer Part Number:

    ADUM6420ABRNZ5-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RN-28-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.99.60

  • Date Of Intro:

    2019-12-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

ADUM6420ABRNZ5-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM6420 involves keeping the input and output circuits separate, using a ground plane to reduce noise, and minimizing the length of the traces between the device and the isolation barrier. Additionally, it's recommended to use a symmetrical layout to reduce common-mode noise.
  • To ensure reliable operation of the ADUM6420 in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device within its recommended operating temperature range.
  • The ADUM6420 is designed to handle high common-mode voltages, but it's essential to ensure that the device is operated within its recommended common-mode voltage range to prevent damage or malfunction. Additionally, the system designer should consider the impact of common-mode voltage on the overall system performance and take necessary precautions to mitigate its effects.
  • To troubleshoot issues with the ADUM6420, start by verifying that the device is properly powered and configured. Check the input and output signals to ensure they are within the recommended ranges. Use a logic analyzer or oscilloscope to monitor the signals and identify any anomalies. If the issue persists, consult the datasheet and application notes for guidance, or contact Analog Devices' technical support for further assistance.
  • The ADUM6420 is designed to provide high isolation voltage, but it's essential to ensure that the device is operated within its recommended isolation voltage range to prevent damage or malfunction. Additionally, the system designer should consider the impact of isolation voltage on the overall system performance and take necessary precautions to mitigate its effects, such as using proper creepage and clearance distances.
