ADUM6420ABRNZ5 - Analog Devices

Description: Quad-Channel Isolators with Integrated DC-to-DC Converter (4:0 directionality)

Download ADUM6420ABRNZ5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

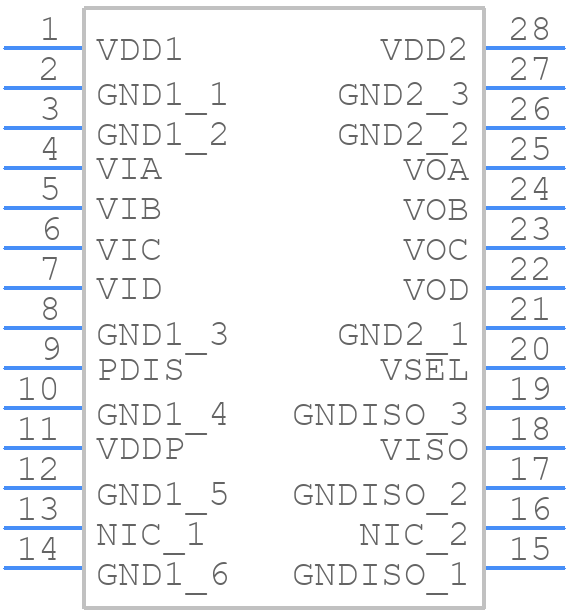

ADUM6420ABRNZ5 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM6420ABRNZ5 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 28-Lead Standard Small Outline, Wide Body, with Finer Pitch [SOIC_W_FP]
click to zoom
3D Models
ADUM6420ABRNZ5 - Analog Devices - 3D model - Small Outline Packages - 28-Lead Standard Small Outline, Wide Body, with Finer Pitch [SOIC_W_FP]
click to zoom

ADUM6420ABRNZ5 Details

  • Manufacturer Part Number:

    ADUM6420ABRNZ5

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RN-28-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.99.60

  • Date Of Intro:

    2019-12-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

ADUM6420ABRNZ5 Frequently Asked Questions (FAQs)

  • The ADUM6420ABRNZ5 can support data rates up to 100 Mbps, making it suitable for high-speed digital isolators.
  • The ADUM6420ABRNZ5 has a built-in power-up and power-down sequencing circuit that ensures the output is in a high-impedance state during power-up and power-down, preventing unwanted output transitions.
  • The typical propagation delay of the ADUM6420ABRNZ5 is around 10 ns, making it suitable for high-speed digital applications.
  • Yes, the ADUM6420ABRNZ5 is designed to operate in harsh industrial environments, with a temperature range of -40°C to 125°C and high immunity to electromagnetic interference (EMI).
  • The ADUM6420ABRNZ5 has a high common-mode transient immunity of 50 kV/μs, making it suitable for applications where high-voltage transients are present.
