ADUM6422ABRNZ3 - Analog Devices

Description: Quad-Channel Isolators with Integrated DC-to-DC Converter (2:2 directionality)

Download ADUM6422ABRNZ3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

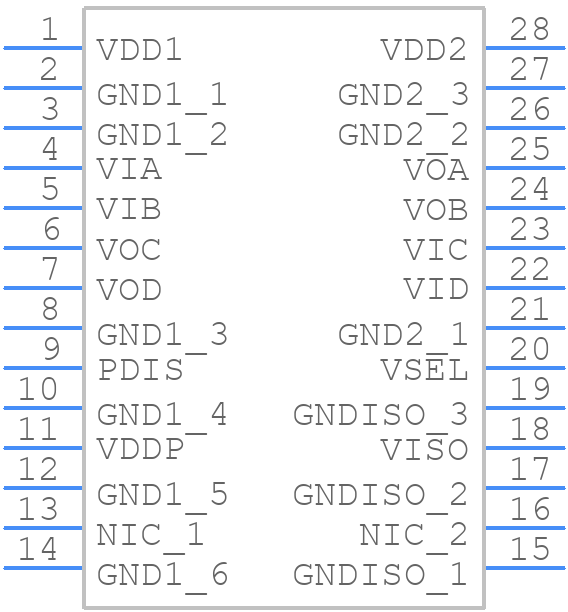

ADUM6422ABRNZ3 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM6422ABRNZ3 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 28-Lead Standard Small Outline, Wide Body, with Finer Pitch [SOIC_W_FP]
click to zoom
3D Models
ADUM6422ABRNZ3 - Analog Devices - 3D model - Small Outline Packages - 28-Lead Standard Small Outline, Wide Body, with Finer Pitch [SOIC_W_FP]
click to zoom

ADUM6422ABRNZ3 Details

  • Manufacturer Part Number:

    ADUM6422ABRNZ3

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RN-28-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.99.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

ADUM6422ABRNZ3 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM6422ABRNZ involves keeping the digital and analog grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliable operation of the ADUM6422ABRNZ over the entire operating temperature range, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal gradients on the board.
  • To mitigate EMI and RFI when using the ADUM6422ABRNZ, it's crucial to use proper shielding, filtering, and grounding techniques. This includes using a metal shield around the isolator, adding EMI filters to the input and output signals, and ensuring a solid ground connection between the isolator and the PCB.
  • To troubleshoot common issues with the ADUM6422ABRNZ, start by checking the power supply voltage, signal integrity, and PCB layout. Verify that the input and output signals are within the specified voltage ranges, and check for any signs of electrical overstress or damage. Use an oscilloscope to analyze the signal waveforms and identify any anomalies.
  • When using the ADUM6422ABRNZ in a high-reliability or safety-critical application, it's essential to follow rigorous testing and validation procedures to ensure the isolator meets the required safety and reliability standards. This may involve additional testing, such as fault injection and failure mode analysis, to verify the isolator's performance under fault conditions.
