ADUM6422ABRNZ5-RL - Analog Devices

Description: Quad-Channel Isolators with Integrated DC-to-DC Converter (2:2 directionality)

Download ADUM6422ABRNZ5-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

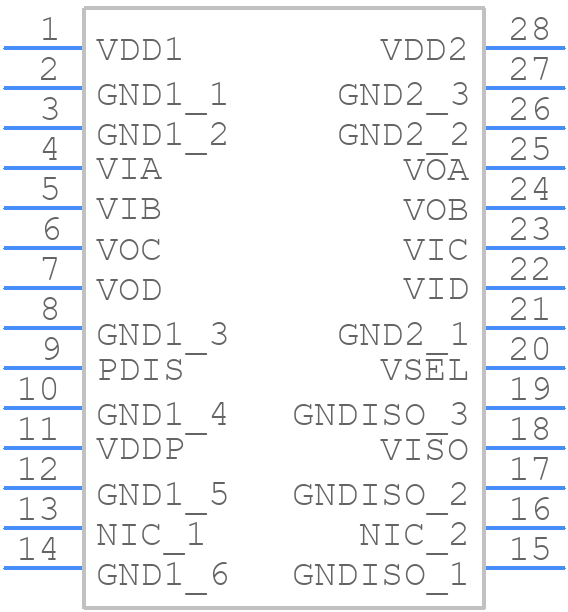

ADUM6422ABRNZ5-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM6422ABRNZ5-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 28-Lead Standard Small Outline, Wide Body, with Finer Pitch [SOIC_W_FP]
click to zoom
3D Models
ADUM6422ABRNZ5-RL - Analog Devices - 3D model - Small Outline Packages - 28-Lead Standard Small Outline, Wide Body, with Finer Pitch [SOIC_W_FP]
click to zoom

ADUM6422ABRNZ5-RL Details

  • Manufacturer Part Number:

    ADUM6422ABRNZ5-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RN-28-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.99.60

  • Date Of Intro:

    2019-12-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

ADUM6422ABRNZ5-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM6422ABRNZ involves keeping the digital and analog grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliable operation of the ADUM6422ABRNZ over the entire operating temperature range, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal gradients.
  • To mitigate EMI and RFI when using the ADUM6422ABRNZ, it's essential to use proper shielding, filtering, and grounding techniques. This includes using a metal shield around the device, adding EMI filters to the input and output lines, and ensuring that the PCB layout is optimized for minimal radiation.
  • To troubleshoot issues with the ADUM6422ABRNZ, start by verifying that the device is properly powered and that the input and output signals are within the specified ranges. Check for any signs of physical damage, such as overheating or electrical overstress. Use a logic analyzer or oscilloscope to monitor the device's behavior and identify any anomalies.
  • When using the ADUM6422ABRNZ in a safety-critical application, it's essential to follow proper safety design practices, such as implementing redundant systems, using error detection and correction mechanisms, and ensuring that the device is properly certified and compliant with relevant safety standards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM6422ABRNZ5-RL Overview

Use the download button to access the ADUM6422ABRNZ5-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM6, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
