ADUM6423ABRNZ5 - Analog Devices

Description: Quad-Channel Isolators with Integrated DC-to-DC Converter (1:3 directionality)

Download ADUM6423ABRNZ5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

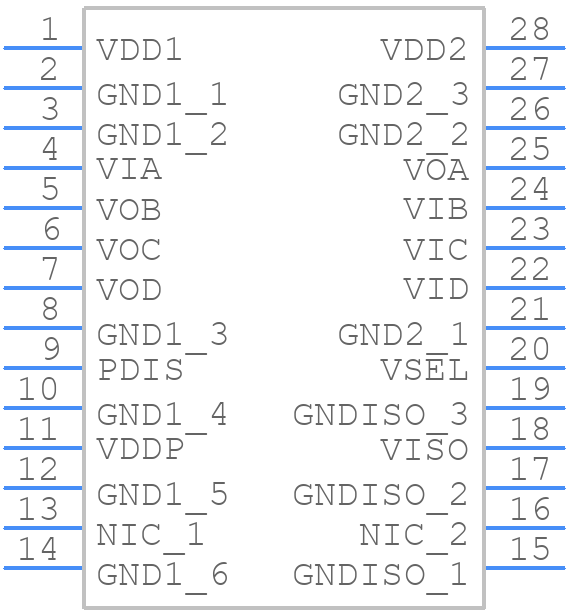

ADUM6423ABRNZ5 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM6423ABRNZ5 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SM OUTLINE,300ML,25MLPITCH_2023-1
click to zoom
3D Models
ADUM6423ABRNZ5 - Analog Devices - 3D model - Small Outline Packages - SM OUTLINE,300ML,25MLPITCH_2023-1
click to zoom

ADUM6423ABRNZ5 Details

  • Manufacturer Part Number:

    ADUM6423ABRNZ5

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RN-28-1

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

ADUM6423ABRNZ5 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM6423ABRNZ involves keeping the digital and analog grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and to avoid routing signals under the device.
  • To ensure reliable operation of the ADUM6423ABRNZ in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. Additionally, the device should be operated within its specified temperature range of -40°C to 125°C.
  • The ADUM6423ABRNZ is capable of supporting data rates up to 150 Mbps, making it suitable for high-speed digital isolation applications.
  • Yes, the ADUM6423ABRNZ is designed to meet the requirements of safety-critical applications, such as those found in industrial, medical, and automotive systems. It has been certified to meet various safety standards, including UL 1577, IEC 60747-5-2, and DIN VDE 0884-11.
  • To troubleshoot issues with the ADUM6423ABRNZ, start by checking the power supply voltages, signal integrity, and PCB layout. Use oscilloscopes and logic analyzers to verify signal waveforms and data transmission. Also, consult the datasheet and application notes for guidance on troubleshooting common issues.
