ADV7120KSTZ30 - Analog Devices

Description: LQFP-48,Triple 8-Bit Video DAC

Download ADV7120KSTZ30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

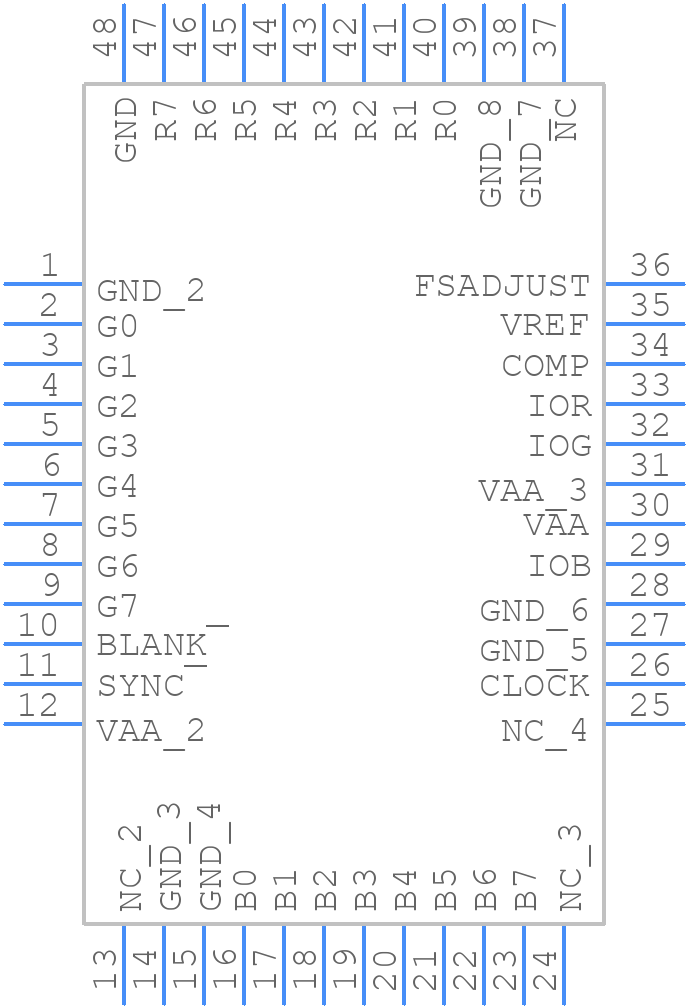

ADV7120KSTZ30 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADV7120KSTZ30 - Analog Devices PCB footprint - Other - Other - QFP50P900X900X160-48N
click to zoom
3D Models
ADV7120KSTZ30 - Analog Devices - 3D model - Other - QFP50P900X900X160-48N
click to zoom

ADV7120KSTZ30 Details

  • Manufacturer Part Number:

    ADV7120KSTZ30

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFP

  • Package Description:

    TQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    ST-48

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog Output Voltage-Max:

    1.4 V

  • Analog Output Voltage-Min:

    -1 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, 8 BITS

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.7 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

ADV7120KSTZ30 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ADV7120KSTZ30 involves using a 4-layer board with a solid ground plane, placing the device near the center of the board, and using short, direct traces for the analog and digital signals. Additionally, it's recommended to use a common mode filter and a ferrite bead to reduce EMI.
  • To optimize the ADV7120KSTZ30 for low power consumption, use the lowest possible clock frequency, disable the internal voltage regulator, and use the power-down mode when not in use. Additionally, consider using a lower supply voltage and optimizing the output load impedance.
  • The maximum cable length supported by the ADV7120KSTZ30 depends on the specific application and the type of cable used. However, as a general rule, the ADV7120KSTZ30 can support cable lengths of up to 10 meters for VGA and up to 30 meters for SVGA.
  • To troubleshoot issues with the ADV7120KSTZ30, start by checking the power supply and clock signals, then verify the input and output signals using an oscilloscope. Check the device's temperature and ensure that it's within the recommended operating range. If the issue persists, consult the datasheet and application notes for further guidance.
  • The ADV7120KSTZ30 is rated for operation up to 85°C, but it's recommended to derate the device's performance at higher temperatures. For high-temperature applications, consider using a heat sink or a thermal management system to keep the device within its recommended operating range.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

ADV7120KSTZ30 Overview

Use the download button to access the ADV7120KSTZ30 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADV71, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
