ADV7171KS - Analog Devices

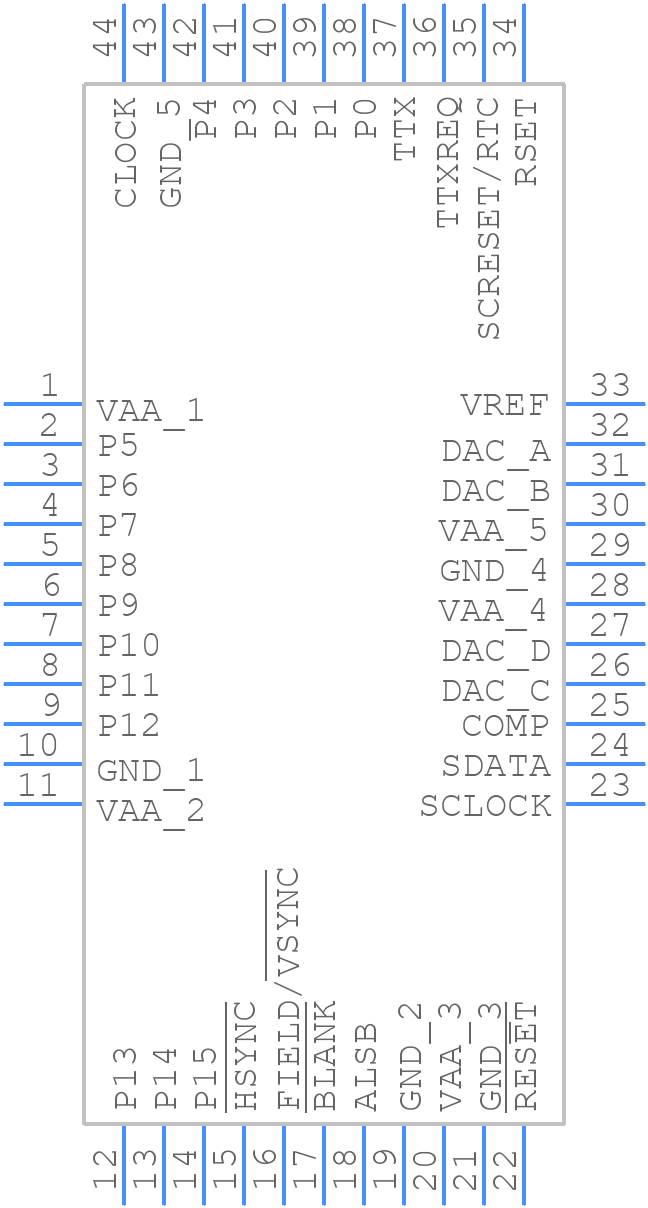

ADV7171KS Details

• Manufacturer Part Number:

  ADV7171KS

• Part Life Cycle Code:

  Obsolete

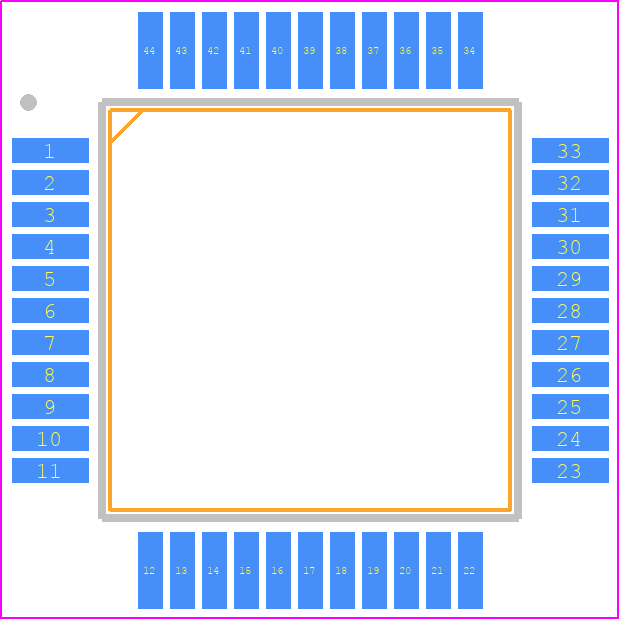

• Part Package Code:

  QFP

• Package Description:

  MS-022AB, MQFP-44

• Pin Count:

  44

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Additional Feature:

  IT CAN ALSO OPERATE AT 4.75V TO 5.25V SUPPLY

• Consumer IC Type:

  COLOR SIGNAL ENCODER

• Input Type:

  R-Y; B-Y; Y

• JESD-30 Code:

  S-PQFP-G44

• JESD-609 Code:

  e0

• Length:

  10 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  44

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  QFP44,.57SQ,32

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK

• Peak Reflow Temperature (Cel):

  240

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.45 mm

• Supply Current-Max:

  90 mA

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  QUAD

• Video Standard:

  PAL; NTSC

• Width:

  10 mm
