ADV7176KS - Analog Devices

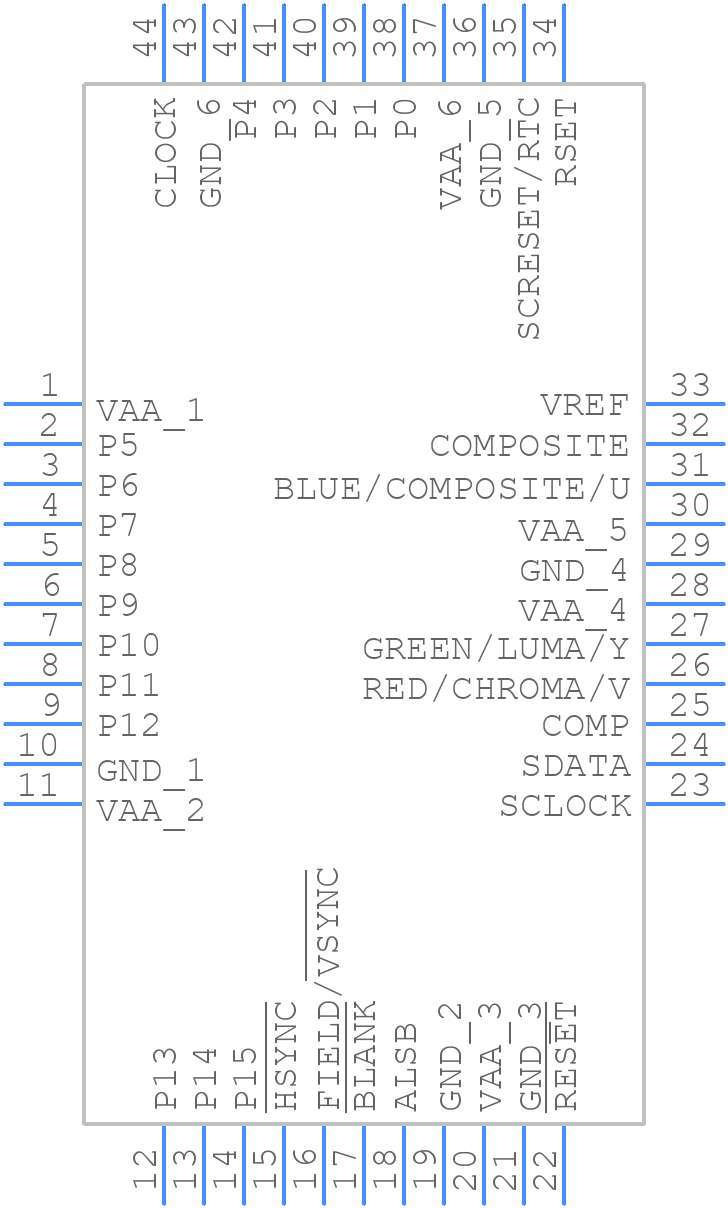

ADV7176KS Details

• Manufacturer Part Number:

  ADV7176KS

• Part Life Cycle Code:

  Obsolete

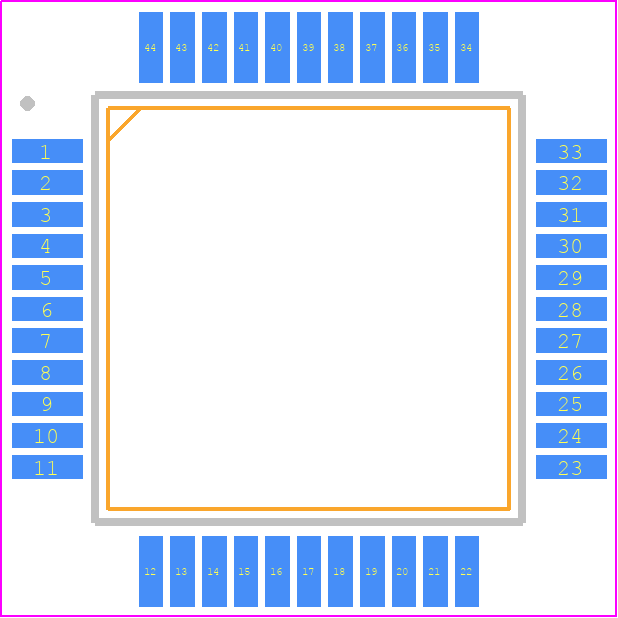

• Part Package Code:

  QFP

• Package Description:

  PLASTIC, QFP-44

• Pin Count:

  44

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Consumer IC Type:

  COLOR SIGNAL ENCODER

• Input Type:

  R-Y; B-Y; Y

• JESD-30 Code:

  S-PQFP-G44

• JESD-609 Code:

  e0

• Length:

  10 mm

• Number of Functions:

  1

• Number of Terminals:

  44

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  QFP44,.57SQ,32

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.44 mm

• Supply Current-Max:

  150 mA

• Supply Voltage-Max (Vsup):

  5.25 V

• Supply Voltage-Min (Vsup):

  4.75 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  QUAD

• Video Standard:

  PAL; NTSC

• Width:

  10 mm
