- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for ADV7179BCP
- Part Number ADV7179BCP
- Manufacturer Analog Devices
- Pin Count 41
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - (CP-40-9)_1
- Released Date Mar 9, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
ADV7179BCP Details
-
Manufacturer Part Number:
ADV7179BCP
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
QFN
-
Package Description:
6 X 6 MM, MO-220VJJD-2, LFCSP-40
-
Pin Count:
40
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Analog Devices Inc
-
YTEOL:
0
-
Consumer IC Type:
COLOR SIGNAL ENCODER
-
Input Type:
R-Y; B-Y; Y
ADV7179BCP Frequently Asked Questions (FAQs)
-
The recommended power-up sequence is to apply VCC before applying the analog video input signal. This ensures that the internal bias circuits are established before the video signal is applied.
-
The ADV7179BCP can be optimized for a specific video format by adjusting the internal gain and offset settings. This can be done by programming the internal registers through the I2C interface. Refer to the datasheet for the specific register settings for each video format.
-
The ADV7179BCP can support cable lengths of up to 100 meters, depending on the video format and cable quality. However, it's recommended to use a cable length of 50 meters or less to ensure optimal video quality.
-
To troubleshoot video artifacts or distortion issues, check the video input signal quality, ensure proper termination and impedance matching, and verify that the ADV7179BCP is properly configured for the specific video format. Also, check for any electromagnetic interference (EMI) or radio-frequency interference (RFI) issues.
-
Yes, the ADV7179BCP can be used in a multi-chip module (MCM) design. However, it's essential to ensure that the MCM design meets the thermal and electrical requirements specified in the datasheet.
Trust Checks
Community Provided
System Verified
Community Approved
ADV7179BCP Overview

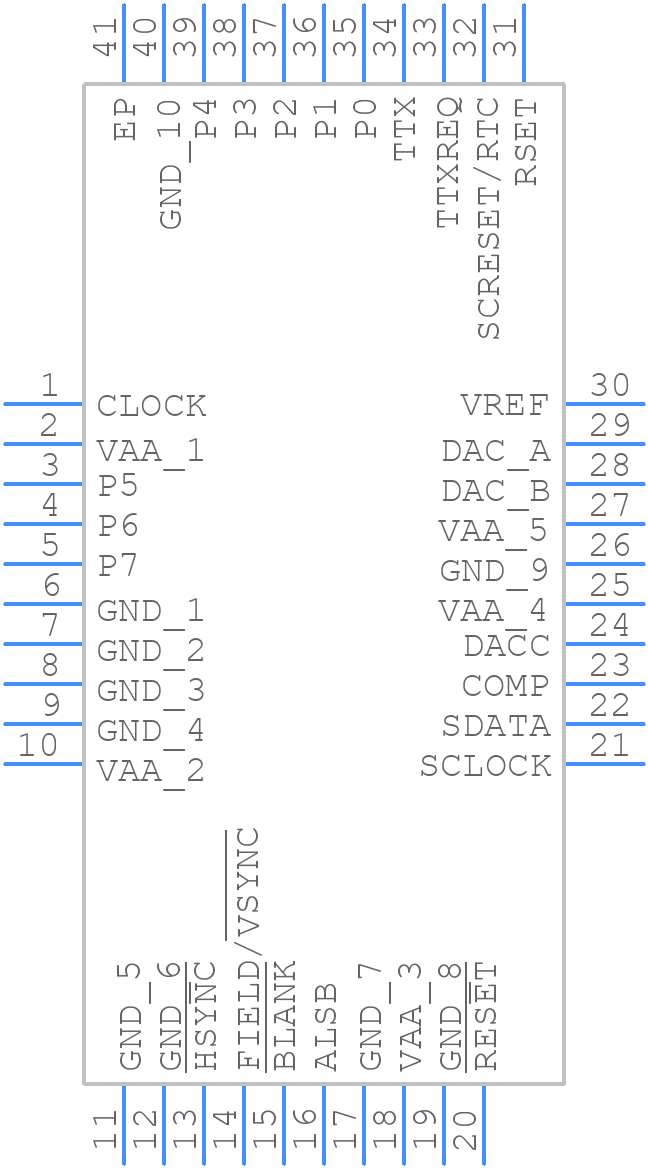

Use the download button to access the ADV7179BCP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADV71,
or try a keyword search, such as Color Signal Converters
