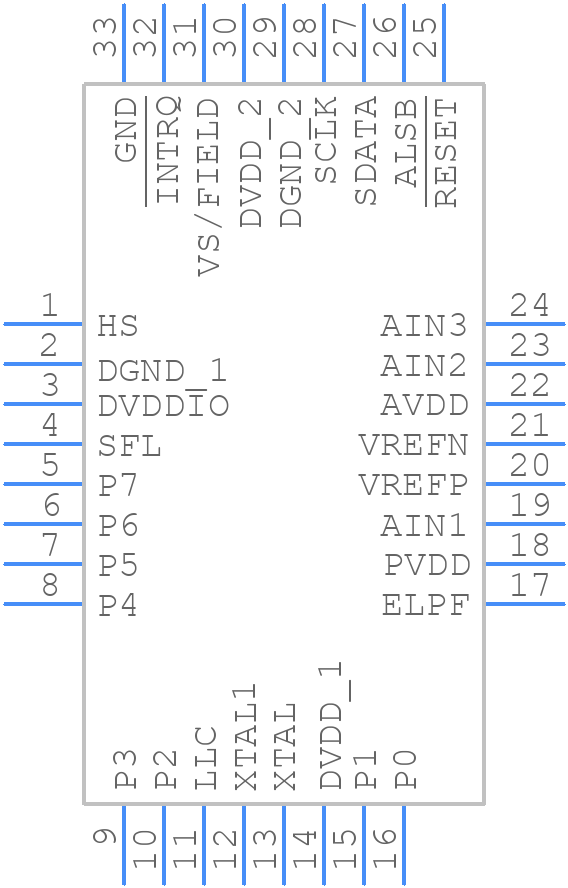

ADV7180BCP32Z-RL - Analog Devices

ADV7180BCP32Z-RL Frequently Asked Questions (FAQs)

• What is the recommended power-up sequence for the ADV7180?
  The recommended power-up sequence is to apply power to the analog supply (VAA) first, followed by the digital supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry.
• How do I configure the ADV7180 for a specific video input standard?
  The ADV7180 can be configured for different video input standards using the I2C interface. The specific register settings for each standard (e.g. NTSC, PAL, SECAM) can be found in the datasheet or in the device's programming guide.
• What is the maximum clock frequency that can be used with the ADV7180?
  The maximum clock frequency that can be used with the ADV7180 is 75 MHz. However, the recommended clock frequency is 27 MHz, which is the typical frequency used in most video applications.
• How do I handle the ADV7180's output data format?
  The ADV7180 outputs data in a 16-bit or 8-bit YCbCr format, depending on the configuration. The output data format can be configured using the I2C interface, and the specific format can be determined by reading the device's register settings.
• What is the ADV7180's latency, and how does it affect my system design?
  The ADV7180's latency is typically around 2-3 lines of video data. This latency should be taken into account when designing the system, as it may affect the timing of the video signal processing.
