ADV7180BCPZ-REEL - Analog Devices

Description: Video Decoder 1 ADC 10bit 40-Pin LFCSP EP T/R

Download ADV7180BCPZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

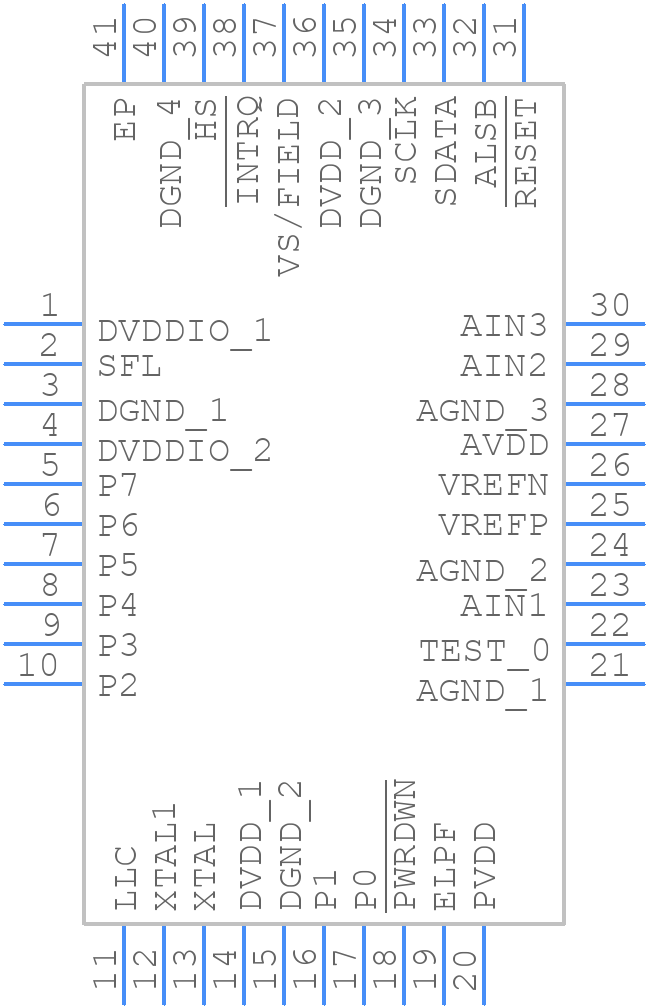

ADV7180BCPZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADV7180BCPZ-REEL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-40-9
click to zoom
3D Models
ADV7180BCPZ-REEL - Analog Devices - 3D model - Quad Flat No-Lead - CP-40-9
click to zoom

ADV7180BCPZ-REEL Details

  • Manufacturer Part Number:

    ADV7180BCPZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFN

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-1

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Additional Feature:

    IT ALSO REQUIRES 1.65V TO 2V SUPPLY

  • Consumer IC Type:

    COLOR SIGNAL DECODER

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    85 mA

  • Supply Voltage-Max (Vsup):

    2 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

ADV7180BCPZ-REEL Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ADV7180BCPZ-REEL can be found in the 'Layout and Packaging' section of the datasheet. Additionally, Analog Devices provides a reference design and layout guidelines in the ADV7180 evaluation board documentation.
  • The ADV7180BCPZ-REEL can be configured for different video input formats using the I2C interface. The specific register settings for each format can be found in the 'Register Map' section of the datasheet. Additionally, Analog Devices provides a software development kit (SDK) that includes example code for configuring the device.
  • The ADV7180BCPZ-REEL supports clock frequencies up to 75 MHz. However, the maximum clock frequency may vary depending on the specific application and video format. It is recommended to consult the datasheet and application notes for more information.
  • Analog Devices provides a troubleshooting guide in the 'Application Notes' section of the datasheet. Additionally, engineers can use the ADV7180 evaluation board and software development kit (SDK) to debug and troubleshoot issues with the device.
  • Yes, the ADV7180BCPZ-REEL is AEC-Q100 qualified and suitable for automotive applications. However, it is recommended to consult the datasheet and application notes for specific requirements and guidelines for automotive applications.
