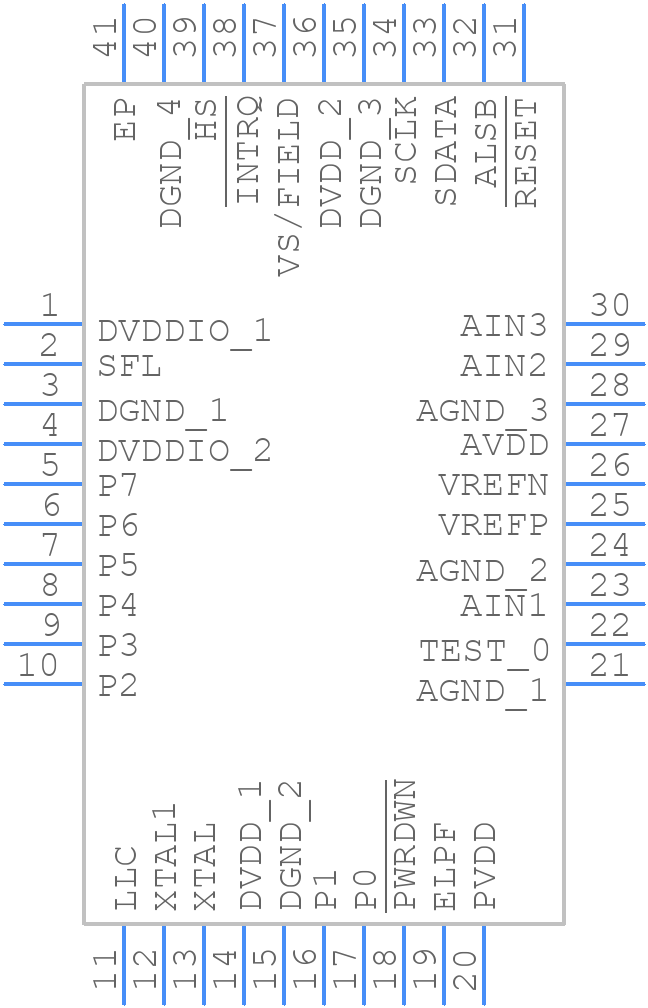

ADV7180BCPZ - Analog Devices

ADV7180BCPZ Frequently Asked Questions (FAQs)

• What is the recommended power-up sequence for the ADV7180BCPZ?
  The recommended power-up sequence is to apply power to the analog supply (VAA) first, followed by the digital supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry.
• How do I configure the ADV7180BCPZ for a specific video input format?
  The ADV7180BCPZ can be configured for different video input formats using the I2C interface. The device has a set of registers that control the video input format, such as the input standard, color space, and sync type. Refer to the datasheet for the specific register settings for each format.
• What is the maximum clock frequency supported by the ADV7180BCPZ?
  The ADV7180BCPZ supports clock frequencies up to 75 MHz. However, the maximum clock frequency may vary depending on the specific application and the quality of the clock signal.
• How do I handle the clock signal for the ADV7180BCPZ?
  The ADV7180BCPZ requires a clock signal to operate. The clock signal can be generated internally using the device's phase-locked loop (PLL) or externally using a crystal oscillator. The clock signal should be connected to the CLKIN pin and should meet the specified frequency and jitter requirements.
• What is the purpose of the PWDN pin on the ADV7180BCPZ?
  The PWDN pin is a power-down pin that allows the device to be powered down to reduce power consumption. When the PWDN pin is asserted low, the device enters a low-power state, and most of the internal circuitry is shut down.
