ADV7180BST48Z-RL - Analog Devices

Description: 10-Bit, 4× Oversampling SDTV Video Decoder

Download ADV7180BST48Z-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

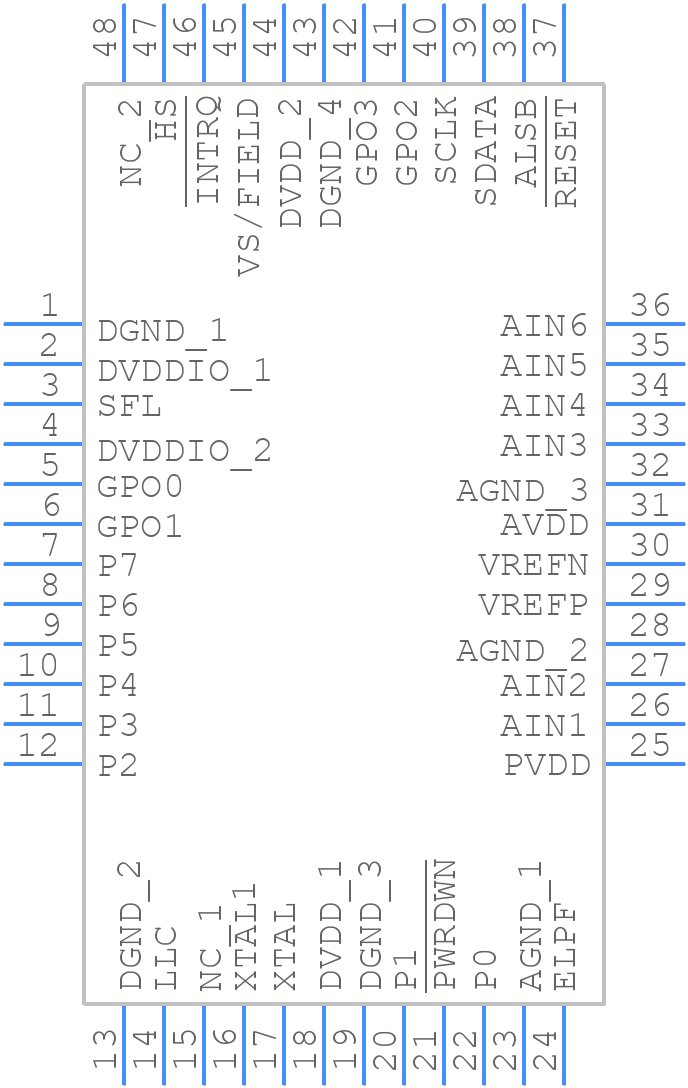

ADV7180BST48Z-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADV7180BST48Z-RL - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - 48-Lead Low Profile Quad Flat Package [LQFP] (ST-48)
click to zoom
3D Models
ADV7180BST48Z-RL - Analog Devices - 3D model - Quad Flat Packages - 48-Lead Low Profile Quad Flat Package [LQFP] (ST-48)
click to zoom

ADV7180BST48Z-RL Details

  • Manufacturer Part Number:

    ADV7180BST48Z-RL

  • Source Url Status Check Date:

    2013-05-01 14:56:51.771

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Pin Count:

    48

  • Manufacturer Package Code:

    ST-48

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Consumer IC Type:

    COLOR SIGNAL DECODER

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max:

    85 mA

  • Supply Voltage-Max (Vsup):

    2 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

ADV7180BST48Z-RL Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to power up the analog power supplies (VAA, VBB, and VCC) before powering up the digital power supply (VDD). This ensures that the analog circuits are stable before the digital circuits are enabled.
  • The ADV7180 can be configured for different video input formats using the I2C interface. The specific register settings for each format are provided in the datasheet and the device's programming guide. Engineers can use the ADV7180's evaluation board and software development kit to simplify the configuration process.
  • The maximum clock frequency that can be used with the ADV7180 is 75 MHz. However, the recommended clock frequency is 27 MHz, which provides the best balance between performance and power consumption.
  • To troubleshoot video quality issues with the ADV7180, engineers can use the device's built-in diagnostic features, such as the video test patterns and the ability to monitor the video signal quality. Additionally, the ADV7180's evaluation board and software development kit provide tools for debugging and testing the device.
  • Yes, the ADV7180 is AEC-Q100 qualified and is suitable for use in automotive applications. However, engineers should ensure that the device is used within its specified operating temperature range and that it is properly qualified for the specific application.
