ADV7180BST48Z - Analog Devices

Description: ANALOG DEVICES - ADV7180BST48Z - Video Decoder IC, 10 bit, 86 MSPS Sample Rate, 6 Channels, 1.71 V to 1.89 V, LQFP-48

Download ADV7180BST48Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

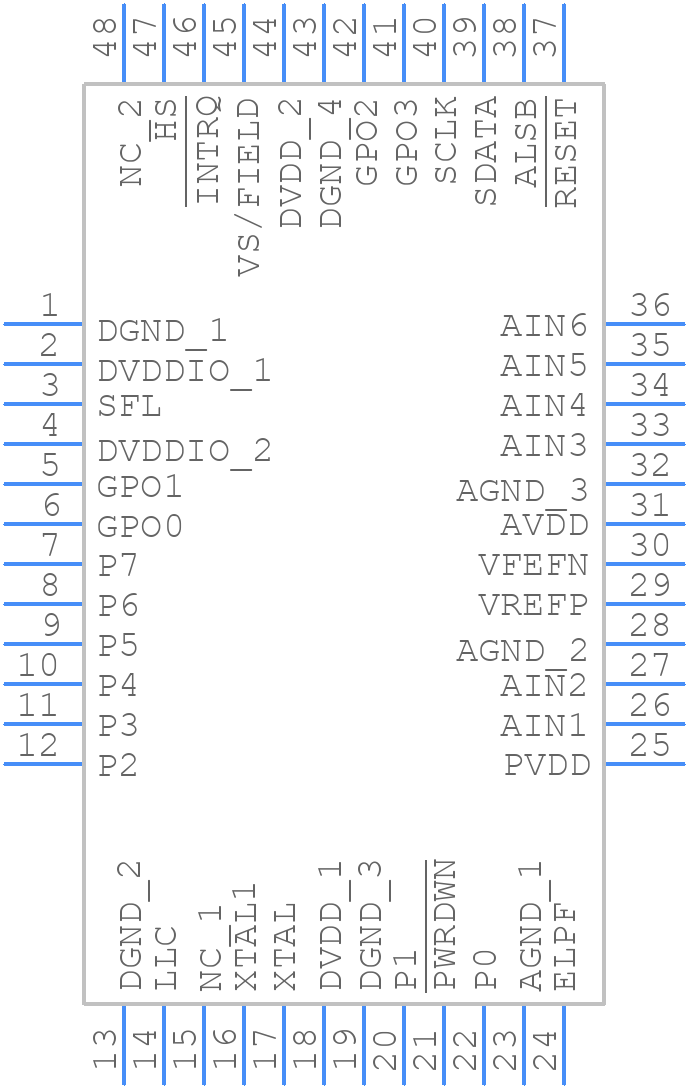

ADV7180BST48Z - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADV7180BST48Z - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - ST-48 (LQFP)
click to zoom
3D Models
ADV7180BST48Z - Analog Devices - 3D model - Quad Flat Packages - ST-48 (LQFP)
click to zoom

ADV7180BST48Z Details

  • Manufacturer Part Number:

    ADV7180BST48Z

  • Source Url Status Check Date:

    2013-05-01 14:56:51.77

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Pin Count:

    48

  • Manufacturer Package Code:

    ST-48

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Consumer IC Type:

    COLOR SIGNAL DECODER

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max:

    85 mA

  • Supply Voltage-Max (Vsup):

    2 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

ADV7180BST48Z Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply power to the analog supply (VAA) first, followed by the digital supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • The ADV7180BST48Z can be configured for different video input formats using the I2C interface. The specific register settings for each format are provided in the datasheet. For example, to configure the device for NTSC input, set register 0x10 to 0x01 and register 0x11 to 0x00.
  • The ADV7180BST48Z supports clock frequencies up to 75 MHz. However, the maximum clock frequency may vary depending on the specific application and system requirements.
  • To troubleshoot issues with the ADV7180BST48Z, first check the power supply voltages and ensure that they are within the recommended range. Next, verify that the clock frequency and video input format are correctly configured. If the issue persists, use a logic analyzer or oscilloscope to debug the I2C interface and verify that the device is receiving the correct commands and data.
  • Yes, the ADV7180BST48Z can be used in an MCM or SoC design. However, it is essential to ensure that the device is properly integrated with other components and that the system design meets the recommended operating conditions and power supply requirements.
