ADV7180KST48Z - Analog Devices

Description: ANALOG DEVICES - ADV7180KST48Z - Video Decoder IC, 10 bit, 86 MSPS Sample Rate, 6 Channels, 1.71 V to 1.89 V, LQFP-48

Download ADV7180KST48Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

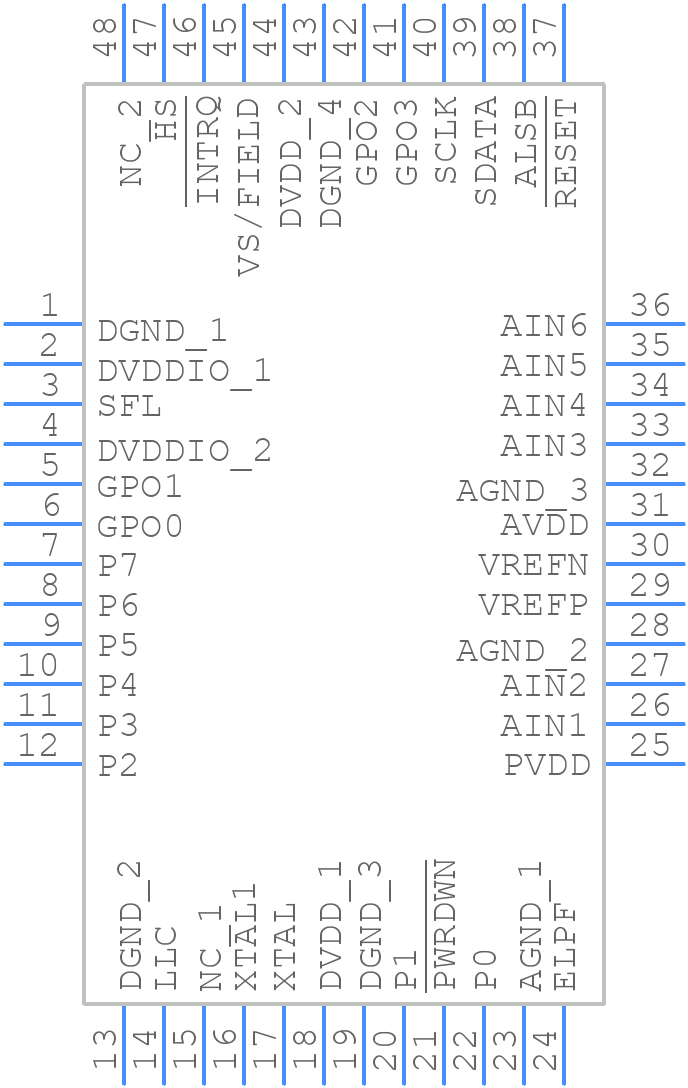

ADV7180KST48Z - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADV7180KST48Z - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - ST-48 (LQFP)
click to zoom
3D Models
ADV7180KST48Z - Analog Devices - 3D model - Quad Flat Packages - ST-48 (LQFP)
click to zoom

ADV7180KST48Z Details

  • Manufacturer Part Number:

    ADV7180KST48Z

  • Source Url Status Check Date:

    2013-05-01 14:56:51.775

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Pin Count:

    48

  • Manufacturer Package Code:

    ST-48

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Consumer IC Type:

    COLOR SIGNAL DECODER

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    85 mA

  • Supply Voltage-Max (Vsup):

    2 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADV7180KST48Z Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to power up the analog power supply (VAA) first, followed by the digital power supply (VDD). This ensures that the analog circuitry is stable before the digital circuitry is powered up.
  • The ADV7180 can be configured for a specific video input format using the I2C interface. The device has a set of registers that control the video input format, such as the input standard, pixel clock frequency, and video timing. Refer to the datasheet and the I2C programming guide for more information.
  • The ADV7180 can support clock frequencies up to 75 MHz. However, the maximum clock frequency may vary depending on the specific application and the quality of the clock signal.
  • To troubleshoot video signal issues with the ADV7180, start by checking the video input signal quality using an oscilloscope or a video signal analyzer. Verify that the video input signal meets the requirements specified in the datasheet. Also, check the ADV7180's register settings and ensure that they are correctly configured for the specific video input format. If the issue persists, refer to the datasheet and the application notes for more troubleshooting tips.
  • Yes, the ADV7180 can be used in a multi-chip module (MCM) design. However, it's essential to ensure that the device is properly decoupled and that the power supply and clock signals are properly routed and filtered to minimize noise and interference.
