ADV7182ABCPZ - Analog Devices

Description: Video Decoder 1 ADC 10bit 32-Pin LFCSP EP Tray

Download ADV7182ABCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

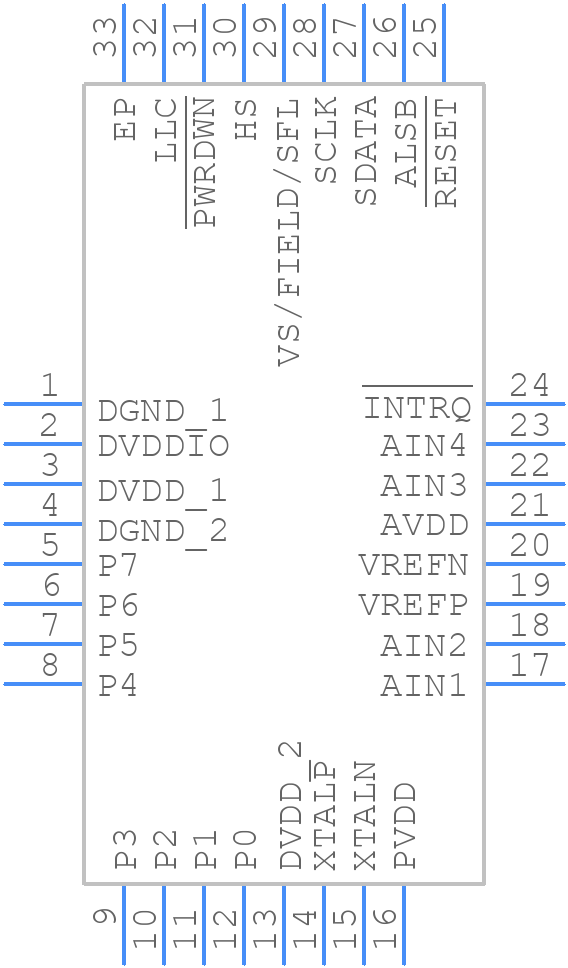

ADV7182ABCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADV7182ABCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-32-12_
click to zoom
3D Models
ADV7182ABCPZ - Analog Devices - 3D model - Quad Flat No-Lead - (CP-32-12_
click to zoom

ADV7182ABCPZ Details

  • Manufacturer Part Number:

    ADV7182ABCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Consumer IC Type:

    COLOR SIGNAL DECODER

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    1.89 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    20

  • Width:

    5 mm

ADV7182ABCPZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply power to the analog supply (VAA) first, followed by the digital supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • The ADV7182ABCPZ can be configured for different video input formats using the I2C interface. The specific register settings for each format are provided in the datasheet. For example, to configure for NTSC, set register 0x10 to 0x01 and register 0x11 to 0x00.
  • The ADV7182ABCPZ supports clock frequencies up to 75 MHz. However, the maximum clock frequency may vary depending on the specific application and system requirements.
  • To troubleshoot issues with the ADV7182ABCPZ, start by checking the power supply voltages and clock frequencies. Verify that the device is properly configured and that the I2C interface is functioning correctly. Use a logic analyzer or oscilloscope to debug the digital signals and verify that the video output is correct.
  • The ADV7182ABCPZ is specified to operate with a 1.8V digital supply (VDD) and a 2.5V analog supply (VAA). While it may be possible to operate the device with a different voltage supply, this is not recommended and may affect the device's performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADV7182ABCPZ Overview

Use the download button to access the ADV7182ABCPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADV71, or try a keyword search, such as Color Signal Converters
