ADV7280BCPZ-M-RL - Analog Devices

Description: Video ICs 10-bit SD Video Decoder

Download ADV7280BCPZ-M-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

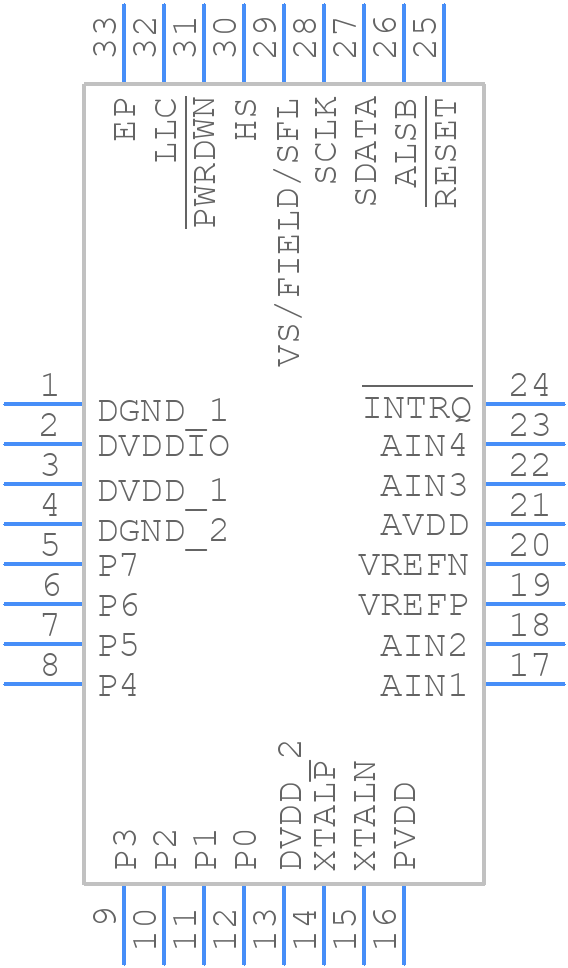

Symbol
ADV7280BCPZ-M-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADV7280BCPZ-M-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-12
click to zoom
3D Models
ADV7280BCPZ-M-RL - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-12
click to zoom

ADV7280BCPZ-M-RL Details

  • Manufacturer Part Number:

    ADV7280BCPZ-M-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Consumer IC Type:

    COLOR SIGNAL DECODER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30

ADV7280BCPZ-M-RL Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ADV7280BCPZ-M-RL can be found in the 'Layout and Packaging' section of the datasheet. Additionally, Analog Devices provides a reference design and layout guidelines in the ADV7280BCPZ-M-RL evaluation board documentation.
  • The ADV7280BCPZ-M-RL can be configured for different video input formats using the I2C interface. The specific register settings for each format can be found in the 'Register Map' section of the datasheet. Additionally, Analog Devices provides a software development kit (SDK) that includes example code for configuring the device.
  • The maximum cable length supported by the ADV7280BCPZ-M-RL depends on the specific video input format and the quality of the cable. As a general guideline, the device can support cable lengths of up to 10 meters for SD-SDI and up to 30 meters for HD-SDI. However, the actual cable length may vary depending on the specific application and environment.
  • Troubleshooting issues with the ADV7280BCPZ-M-RL typically involves checking the power supply, clock signals, and video input signals. The device also has a built-in diagnostic mode that can be used to test the device's functionality. Additionally, Analog Devices provides a troubleshooting guide and application notes that can help identify and resolve common issues.
  • Yes, the ADV7280BCPZ-M-RL is AEC-Q100 qualified and suitable for automotive applications. However, it's essential to ensure that the device is used within the specified operating conditions and that the system design meets the requirements of the automotive application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADV7280BCPZ-M-RL Overview

Use the download button to access the ADV7280BCPZ-M-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADV72, or try a keyword search, such as Color Signal Converters
