ADV7280WBCPZ-M-RL - Analog Devices

Description: 10-Bit, 4× Oversampled SDTV Video Decoder with Deinterlacer

Download ADV7280WBCPZ-M-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

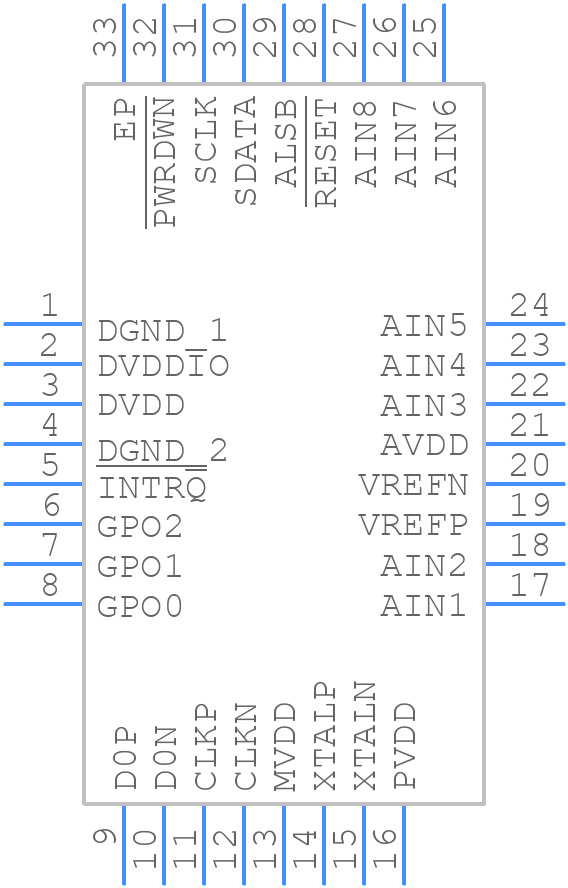

ADV7280WBCPZ-M-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADV7280WBCPZ-M-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package [LFCSP] 5 mm × 5 mm Body and 0.75 mm Package Height (CP-32-12)
click to zoom
3D Models
ADV7280WBCPZ-M-RL - Analog Devices - 3D model - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package [LFCSP] 5 mm × 5 mm Body and 0.75 mm Package Height (CP-32-12)
click to zoom

ADV7280WBCPZ-M-RL Details

  • Manufacturer Part Number:

    ADV7280WBCPZ-M-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Consumer IC Type:

    COLOR SIGNAL DECODER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30

ADV7280WBCPZ-M-RL Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout guide in the ADV7280WBCPZ-M-RL evaluation board documentation, which includes guidelines for component placement, routing, and thermal management.
  • The ADV7280WBCPZ-M-RL can be configured using the I2C interface to select the desired video input format. The device has a set of registers that control the video input format, and the configuration process is described in the device datasheet and application notes.
  • The maximum cable length supported by the ADV7280WBCPZ-M-RL depends on the video input format and the quality of the cable. As a general guideline, Analog Devices recommends using cables that are 10 meters or less in length for HD video signals, and 5 meters or less for 3G-SDI signals.
  • Yes, the ADV7280WBCPZ-M-RL can be used in a multi-camera system. The device has a separate input for each camera, and the outputs can be multiplexed to reduce the number of cables required. However, the specific implementation details will depend on the system requirements and the number of cameras used.
  • Analog Devices provides a set of troubleshooting guidelines and tools, including a video signal analyzer and a debugging tool, to help identify and resolve video signal issues with the ADV7280WBCPZ-M-RL. Additionally, the device datasheet and application notes provide guidance on common issues and their solutions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADV7280WBCPZ-M-RL Overview

Use the download button to access the ADV7280WBCPZ-M-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADV72, or try a keyword search, such as Color Signal Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
