ADV7281AWBCPZ-M - Analog Devices

Description: Video ICs 10-bit SD Diff Video Decoder

Download ADV7281AWBCPZ-M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

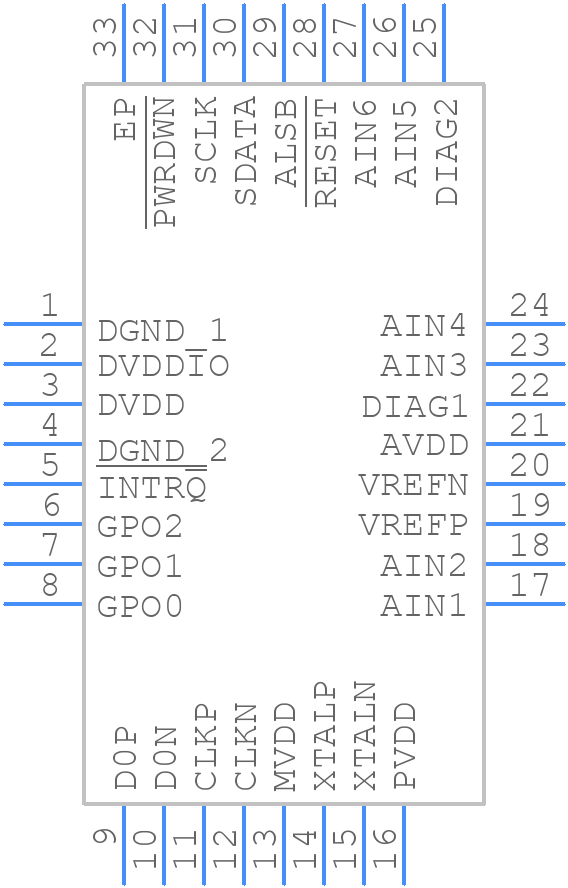

Symbol
ADV7281AWBCPZ-M - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADV7281AWBCPZ-M - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ADV7281AWBCPZ-M
click to zoom
3D Models
ADV7281AWBCPZ-M - Analog Devices - 3D model - Quad Flat No-Lead - ADV7281AWBCPZ-M
click to zoom

ADV7281AWBCPZ-M Details

  • Manufacturer Part Number:

    ADV7281AWBCPZ-M

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Consumer IC Type:

    COLOR SIGNAL DECODER

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    1.89 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADV7281AWBCPZ-M Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADV7281AWBCPZ-M involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connected to the analog inputs. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To optimize the ADV7281AWBCPZ-M for a specific video input, adjust the gain and offset settings for the analog front-end, and fine-tune the clock and data alignment settings for the digital backend. Consult the datasheet and application notes for specific guidance.
  • The maximum cable length supported by the ADV7281AWBCPZ-M depends on the specific video standard and cable quality. As a general rule, the ADV7281AWBCPZ-M can support up to 10 meters of cable length for SD-SDI, 20 meters for HD-SDI, and 30 meters for 3G-SDI.
  • To troubleshoot issues with the ADV7281AWBCPZ-M, start by checking the power supply and clock signals, then verify the video input signal quality and configuration. Use the device's built-in diagnostic features, such as the status registers and error flags, to identify the source of the issue.
  • While the ADV7281AWBCPZ-M is designed to support standard video formats, it may be possible to use it with non-standard video inputs with some customization. Consult with Analog Devices' technical support team to determine the feasibility of supporting a specific non-standard video format.
