ADV7281WBCPZ-M-RL - Analog Devices

Description: 10-Bit, 4× Oversampled SDTV Video Decoder Decoder with Differential Inputs

Download ADV7281WBCPZ-M-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

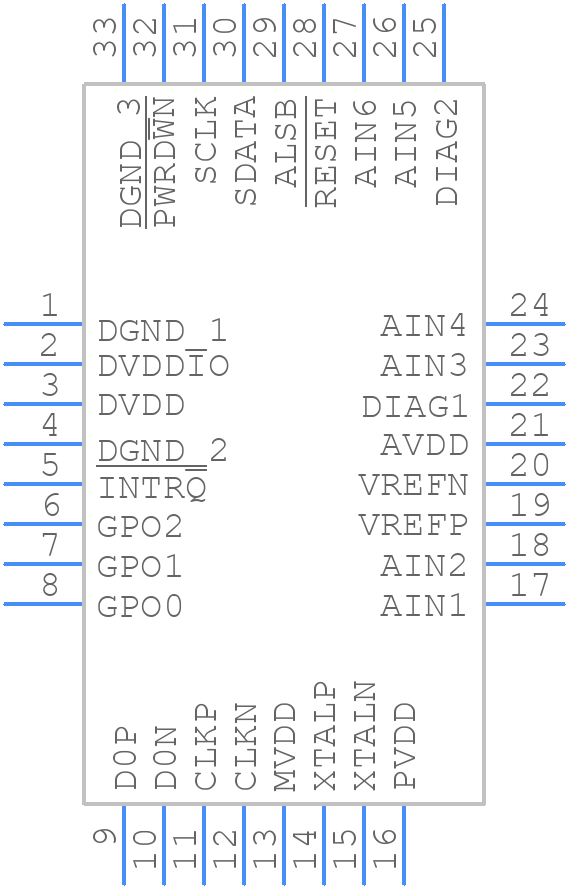

ADV7281WBCPZ-M-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADV7281WBCPZ-M-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package [LFCSP_WQ]_2024-3
click to zoom
3D Models
ADV7281WBCPZ-M-RL - Analog Devices - 3D model - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package [LFCSP_WQ]_2024-3
click to zoom

ADV7281WBCPZ-M-RL Details

  • Manufacturer Part Number:

    ADV7281WBCPZ-M-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Consumer IC Type:

    COLOR SIGNAL DECODER

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

ADV7281WBCPZ-M-RL Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout guide in the ADV7281WBCPZ-M-RL evaluation board documentation, which includes guidelines for component placement, routing, and thermal management.
  • The ADV7281WBCPZ-M-RL can be configured using the I2C interface to select the desired video input format. The device has a set of registers that control the video input format, and the specific settings depend on the desired format. Refer to the ADV7281WBCPZ-M-RL datasheet and programming guide for more information.
  • The maximum cable length supported by the ADV7281WBCPZ-M-RL depends on the video input format and the quality of the cable. As a general guideline, Analog Devices recommends using cables with a maximum length of 10 meters for SD-SDI, 20 meters for HD-SDI, and 30 meters for 3G-SDI. However, the actual cable length may vary depending on the specific application and environment.
  • To troubleshoot video signal issues with the ADV7281WBCPZ-M-RL, start by checking the video input signal quality using an oscilloscope or a video signal analyzer. Verify that the video input signal meets the recommended specifications in the datasheet. Also, check the device's register settings and ensure that they are correctly configured for the desired video input format. If the issue persists, contact Analog Devices support for further assistance.
  • Yes, the ADV7281WBCPZ-M-RL is AEC-Q100 qualified and suitable for automotive applications. However, it's essential to ensure that the device is used within the recommended operating conditions and that the system design meets the required automotive standards and regulations.
