ADV7282AWBCPZ - Analog Devices

Description: 10-Bit, 4× Oversampled SDTV Video Decoder with Differential Inputs 1.71V ~ 1.89V , -40°C ~ 105°C

Download ADV7282AWBCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

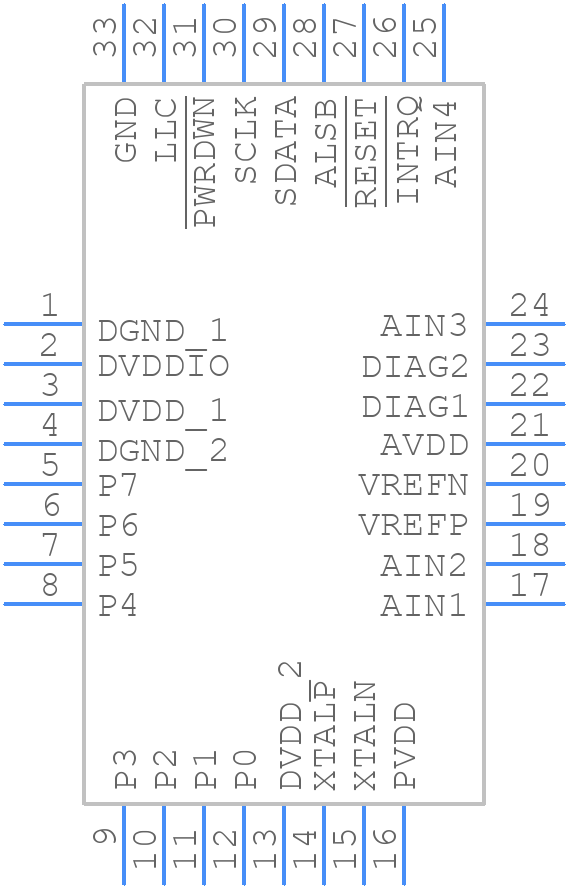

ADV7282AWBCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADV7282AWBCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-12_2025-1.2
click to zoom
3D Models
ADV7282AWBCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-12_2025-1.2
click to zoom

ADV7282AWBCPZ Details

  • Manufacturer Part Number:

    ADV7282AWBCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Consumer IC Type:

    COLOR SIGNAL DECODER

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    1.89 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADV7282AWBCPZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply power to the analog supply (VAA) first, followed by the digital supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • The ADV7282AWBCPZ can be configured for different video input standards using the I2C interface. The specific register settings for each standard are provided in the datasheet. For example, to configure the device for NTSC, set register 0x10 to 0x01 and register 0x11 to 0x00.
  • The maximum clock frequency that can be used with the ADV7282AWBCPZ is 27 MHz. Exceeding this frequency may result in incorrect operation or damage to the device.
  • To troubleshoot issues with the ADV7282AWBCPZ, first check the power supply voltages and ensure that they are within the recommended range. Next, verify that the clock frequency is within the recommended range and that the I2C interface is functioning correctly. If the issue persists, consult the datasheet and application notes for further guidance.
  • Yes, the ADV7282AWBCPZ can be used in a multi-chip module (MCM) design. However, special care must be taken to ensure that the device is properly decoupled and that the thermal design is adequate to prevent overheating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADV7282AWBCPZ Overview

Use the download button to access the ADV7282AWBCPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADV72, or try a keyword search, such as Color Signal Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
