ADV7282WBCPZ-RL - Analog Devices

Description: Video Decoder 1ADC 10bit Automotive 32-Pin LFCSP EP T/R

Download ADV7282WBCPZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

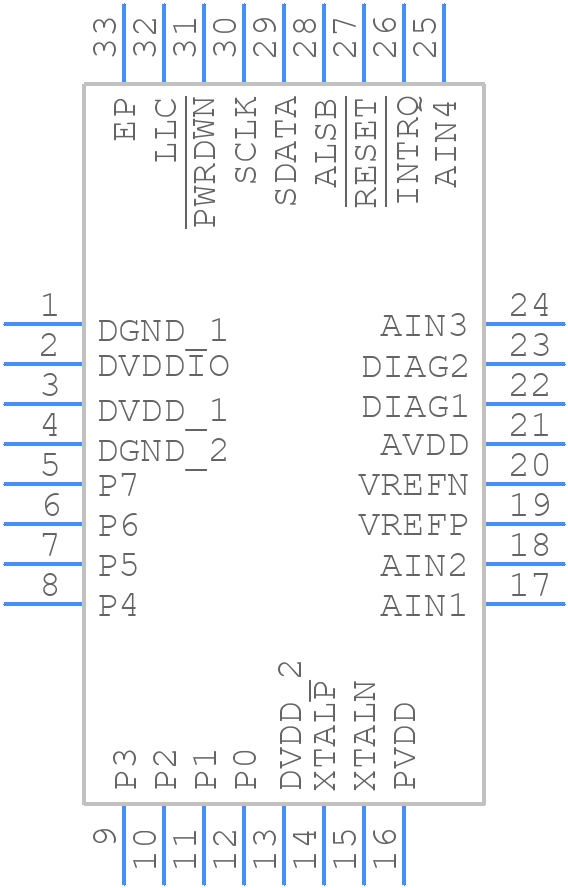

ADV7282WBCPZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADV7282WBCPZ-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-12
click to zoom
3D Models
ADV7282WBCPZ-RL - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-12
click to zoom

ADV7282WBCPZ-RL Details

  • Manufacturer Part Number:

    ADV7282WBCPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Consumer IC Type:

    COLOR SIGNAL DECODER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30

ADV7282WBCPZ-RL Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ADV7282WBCPZ-RL can be found in the ADV7282WBCPZ-RL Evaluation Board User Guide (UG-311) provided by Analog Devices Inc. It includes guidelines for component placement, routing, and thermal management.
  • The ADV7282WBCPZ-RL can be configured for specific video input formats using the I2C interface. The device has a set of registers that control the video input format, such as the input standard, clock frequency, and video mode. Refer to the ADV7282WBCPZ-RL datasheet and the I2C programming guide for more information.
  • The maximum cable length supported by the ADV7282WBCPZ-RL depends on the video input format and the quality of the cable. As a general guideline, the device can support cable lengths of up to 10 meters for SD-SDI, 20 meters for HD-SDI, and 30 meters for 3G-SDI. However, it's recommended to perform signal integrity analysis and testing to ensure reliable operation.
  • To troubleshoot video signal issues with the ADV7282WBCPZ-RL, start by checking the video input signal quality using an oscilloscope or a video signal analyzer. Verify that the input signal meets the device's specifications and that the clock frequency is correct. Also, check the device's registers and configuration settings to ensure that they are correct. If the issue persists, refer to the ADV7282WBCPZ-RL datasheet and application notes for troubleshooting guidelines.
  • Yes, the ADV7282WBCPZ-RL is AEC-Q100 qualified and suitable for automotive applications. It meets the requirements for temperature range, vibration, and electromagnetic compatibility (EMC) specified by the Automotive Electronics Council (AEC). However, it's essential to ensure that the device is used within its specified operating conditions and that the system design meets the relevant automotive standards.
