ADV7391BCPZ - Analog Devices

Description: Video Encoder IC Set-Top Boxes, Video Players, Displays 32-LFCSP-VQ (5x5)

Download ADV7391BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

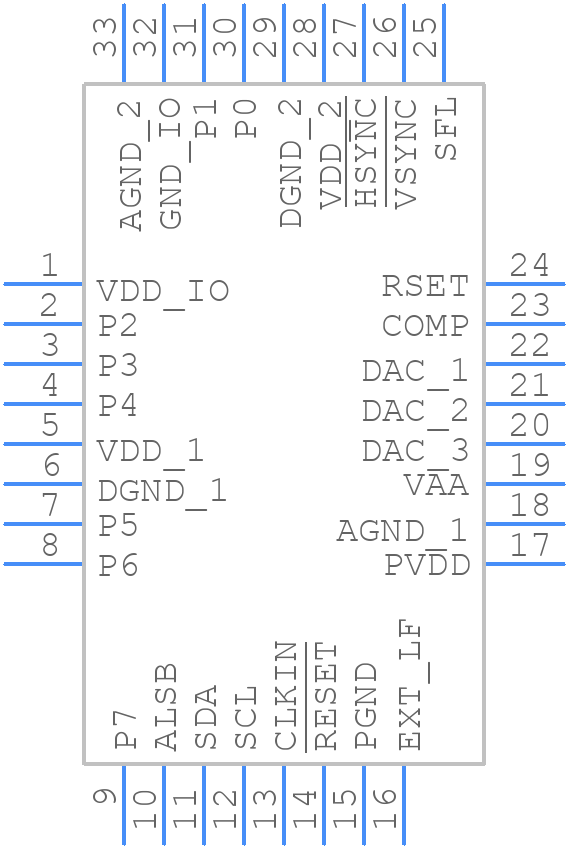

Symbol
ADV7391BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADV7391BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-2 (LFCSP)_2025-4
click to zoom
3D Models
ADV7391BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-2 (LFCSP)_2025-4
click to zoom

ADV7391BCPZ Details

  • Manufacturer Part Number:

    ADV7391BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFN

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-2

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Consumer IC Type:

    COLOR SIGNAL ENCODER

  • Input Type:

    RGB; R-Y; B-Y; Y

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    1.89 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Video Standard:

    PAL; NTSC

  • Width:

    5 mm

ADV7391BCPZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply power to the analog supply (VAA) first, followed by the digital supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • The ADV7391BCPZ can be configured for different video standards using the I2C interface. The specific register settings for each standard are provided in the datasheet. For example, to configure for NTSC, set register 0x10 to 0x01, and for PAL, set register 0x10 to 0x02.
  • The ADV7391BCPZ supports clock frequencies up to 108 MHz. However, the maximum clock frequency may vary depending on the specific application and video standard being used.
  • To troubleshoot issues with the ADV7391BCPZ, start by checking the power supply voltages and ensuring that they are within the recommended range. Next, verify that the clock signal is present and within the recommended frequency range. If the issue persists, use a logic analyzer or oscilloscope to debug the I2C interface and verify that the registers are being set correctly.
  • Yes, the ADV7391BCPZ can be used in an MCM design. However, special care must be taken to ensure that the thermal and electrical interfaces between the chips are properly managed. Consult the datasheet and application notes for more information on MCM design considerations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADV7391BCPZ Overview

Use the download button to access the ADV7391BCPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADV73, or try a keyword search, such as Color Signal Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
