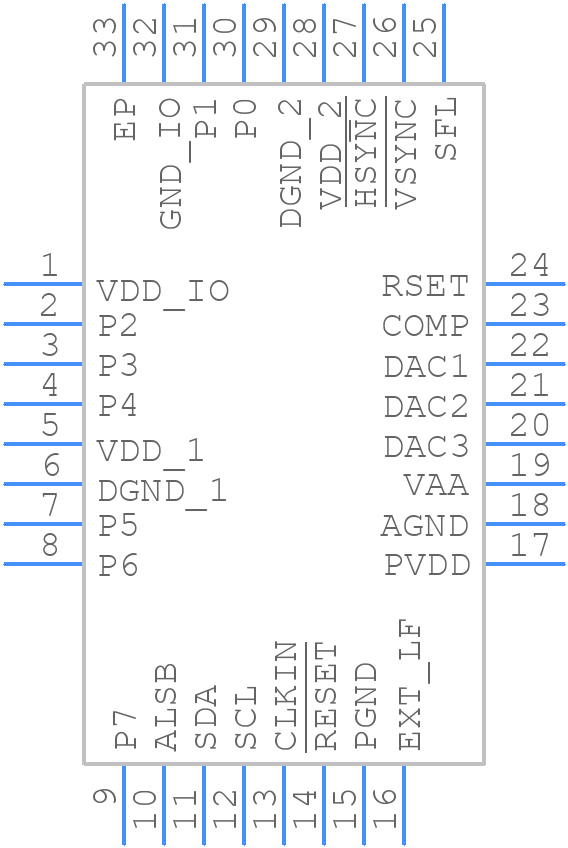

ADV7391WBCPZ - Analog Devices

ADV7391WBCPZ Frequently Asked Questions (FAQs)

• What is the recommended power-up sequence for the ADV7391?
  The recommended power-up sequence is to apply power to the analog supply (VAA) first, followed by the digital supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry.
• How do I configure the ADV7391 for a specific video standard?
  The ADV7391 can be configured for different video standards (e.g. NTSC, PAL, SECAM) by setting the appropriate registers. Refer to the datasheet for the specific register settings for each standard.
• What is the maximum clock frequency supported by the ADV7391?
  The ADV7391 supports clock frequencies up to 108 MHz. However, the maximum clock frequency may vary depending on the specific application and video standard.
• How do I synchronize the ADV7391 with an external clock source?
  The ADV7391 can be synchronized with an external clock source by connecting the clock signal to the CLKIN pin and configuring the device to use the external clock source.
• What is the power consumption of the ADV7391?
  The power consumption of the ADV7391 varies depending on the specific application and operating conditions. Refer to the datasheet for typical power consumption values.
