ADV7392WBCPZ-REEL - Analog Devices

Description: Low Power, Chip Scale 10-Bit SD/HD Video Encoder

Download ADV7392WBCPZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

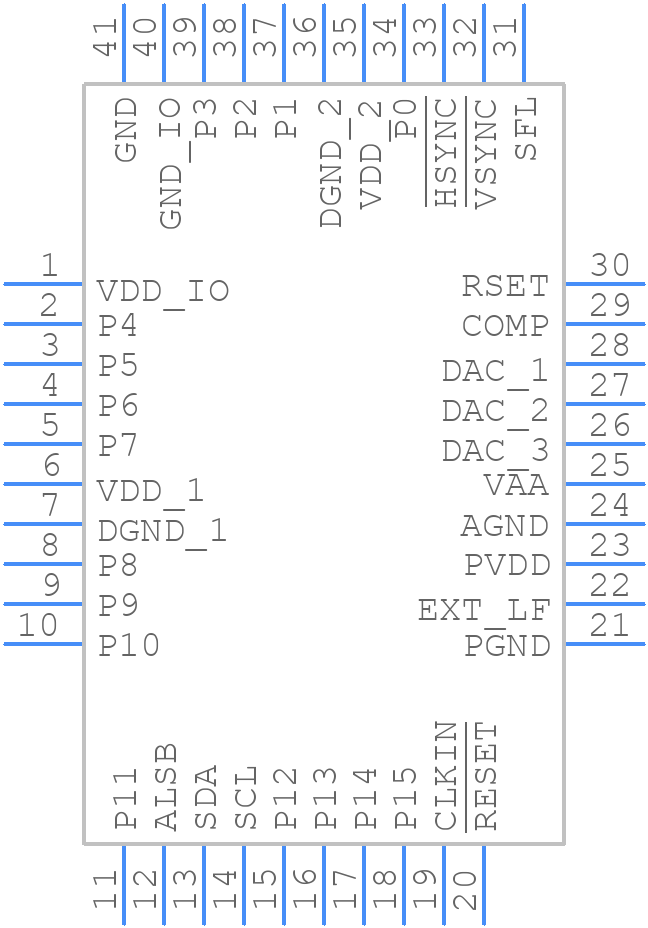

ADV7392WBCPZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADV7392WBCPZ-REEL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-40-9
click to zoom
3D Models
ADV7392WBCPZ-REEL - Analog Devices - 3D model - Quad Flat No-Lead - CP-40-9
click to zoom

ADV7392WBCPZ-REEL Details

  • Manufacturer Part Number:

    ADV7392WBCPZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-9

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    COLOR SIGNAL ENCODER

  • Input Type:

    RGB; R-Y; B-Y; Y

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    1.89 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Video Standard:

    PAL; NTSC

  • Width:

    6 mm

ADV7392WBCPZ-REEL Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ADV7392WBCPZ-REEL can be found in the ADV7392 Evaluation Board documentation, which provides a reference design for the device. Additionally, Analog Devices provides a PCB layout guide for the ADV7392, which includes guidelines for component placement, routing, and thermal management.
  • The ADV7392WBCPZ-REEL is a highly configurable device, and the configuration process involves setting various registers and pins to select the desired video format. The ADV7392 datasheet provides a detailed description of the configuration process, and Analog Devices also offers a software development kit (SDK) that includes a graphical user interface (GUI) for configuring the device.
  • The ADV7392WBCPZ-REEL supports clock frequencies up to 170 MHz, but the maximum clock frequency may vary depending on the specific application and the quality of the clock signal. It is recommended to consult the ADV7392 datasheet and application notes for more information on clock frequency limitations.
  • To ensure reliable data transmission over the HDMI output of the ADV7392WBCPZ-REEL, it is recommended to follow the HDMI specification guidelines for signal integrity, including proper termination, routing, and shielding of the HDMI signals. Additionally, the ADV7392 datasheet provides guidelines for configuring the device's HDMI output, including settings for clock frequency, data rate, and transmission mode.
  • The power consumption of the ADV7392WBCPZ-REEL varies depending on the specific configuration and operating mode. The ADV7392 datasheet provides detailed information on power consumption, including typical and maximum values for different operating modes. To optimize power consumption, engineers can use the device's power-down modes, adjust the clock frequency, and optimize the system design to minimize power consumption.
