ADV7393BCPZ - Analog Devices

Description: Video Encoder IC Set-Top Boxes, Video Players, Displays 40-LFCSP-VQ (6x6)

Download ADV7393BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

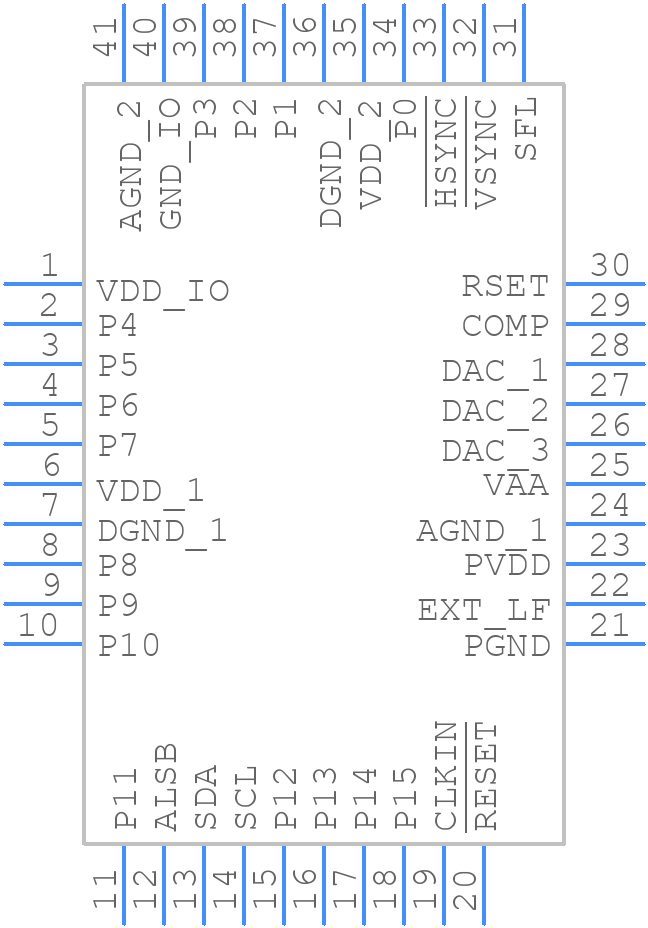

ADV7393BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADV7393BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-40-9
click to zoom
3D Models
ADV7393BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-40-9
click to zoom

ADV7393BCPZ Details

  • Manufacturer Part Number:

    ADV7393BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFN

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-9

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    COLOR SIGNAL ENCODER

  • Input Type:

    RGB; R-Y; B-Y; Y

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    1.89 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Video Standard:

    PAL; NTSC

  • Width:

    6 mm

ADV7393BCPZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply power to the analog supply (VAA) first, followed by the digital supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • The ADV7393BCPZ can be configured for different video standards using the I2C interface. The specific register settings for each standard are provided in the datasheet. For example, for NTSC, set register 0x10 to 0x01, and for PAL, set register 0x10 to 0x02.
  • The maximum clock frequency that can be used with the ADV7393BCPZ is 27 MHz. Exceeding this frequency may result in incorrect operation or damage to the device.
  • To troubleshoot issues with the ADV7393BCPZ, first check the power supply voltages and ensure that they are within the recommended range. Then, verify that the clock frequency is within the recommended range. If the issue persists, use a logic analyzer or oscilloscope to verify the digital signals and check for any errors in the I2C communication.
  • Yes, the ADV7393BCPZ can be used in a multi-chip module (MCM) design. However, special care must be taken to ensure that the thermal and electrical interfaces are properly managed to avoid any reliability issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADV7393BCPZ Overview

Use the download button to access the ADV7393BCPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADV73, or try a keyword search, such as Color Signal Converters
