ADVFC32KNZ - Analog Devices

ADVFC32KNZ Details

• Manufacturer Part Number:

  ADVFC32KNZ

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

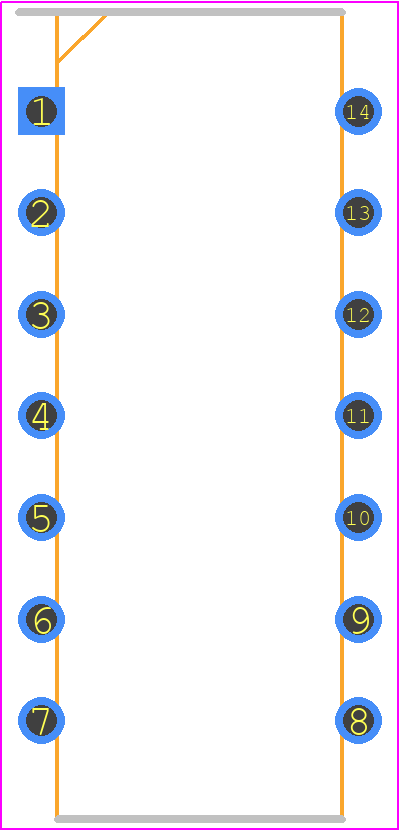

• Part Package Code:

  DIP

• Package Description:

  PLASTIC, DIP-14

• Pin Count:

  14

• Manufacturer Package Code:

  N-14

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  3

• Converter Type:

  VOLTAGE TO FREQUENCY CONVERTER

• JESD-30 Code:

  R-PDIP-T14

• JESD-609 Code:

  e3

• Length:

  19.305 mm

• Linearity Error-Max (EL):

  0.2%

• Negative Input Voltage-Max:

  -10 V

• Negative Supply Voltage-Max:

  -18 V

• Negative Supply Voltage-Min:

  -9 V

• Negative Supply Voltage-Nom:

  -15 V

• Number of Functions:

  1

• Number of Terminals:

  14

• Operating Frequency-Max:

  0.5 MHz

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -25 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.33 mm

• Supply Voltage-Max:

  18 V

• Supply Voltage-Min:

  9 V

• Supply Voltage-Nom:

  15 V

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Temperature Grade:

  OTHER

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
