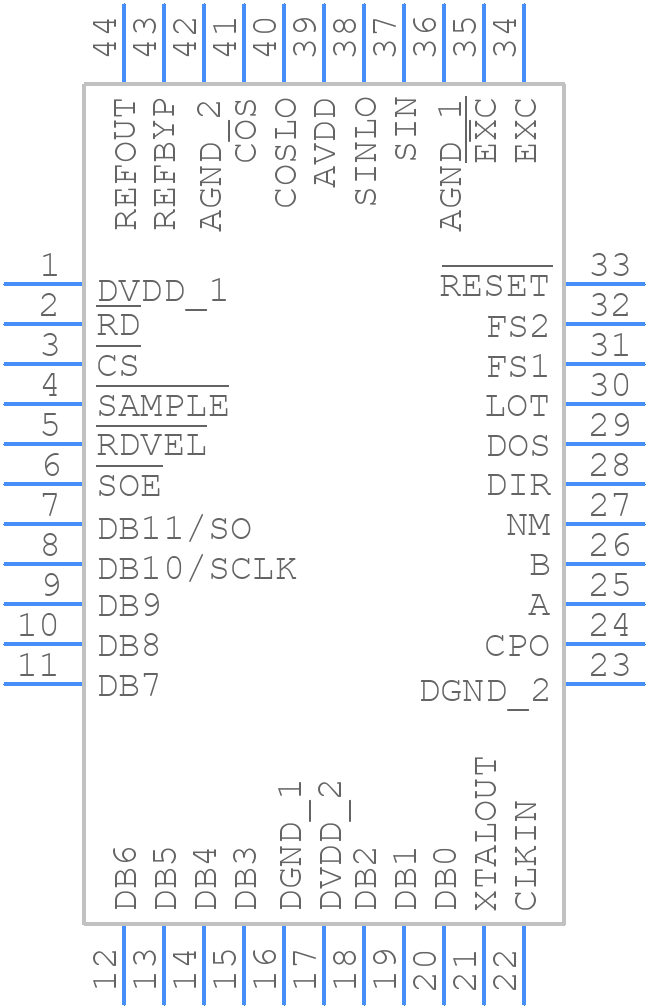

ADW71205WSTZ - Analog Devices

ADW71205WSTZ Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the ADW71205WSTZ?
  A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital sections separate, and use a star-grounding configuration to minimize noise.
• How do I ensure the ADW71205WSTZ is properly calibrated for accurate measurements?
  Follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the internal calibration registers. It's also recommended to perform a system-level calibration to account for external component tolerances.
• What is the maximum allowed input voltage range for the ADW71205WSTZ?
  The maximum allowed input voltage range is ±VREF (typically 2.5V or 5V), but it's recommended to keep the input voltage within ±1.5V to ensure optimal performance and linearity.
• How do I minimize noise and interference when using the ADW71205WSTZ?
  Use a low-noise power supply, decouple the power pins with 10nF capacitors, and keep the analog and digital sections separate. Also, use a shielded cable for the analog input and keep it away from digital signals.
• What is the recommended clock frequency for the ADW71205WSTZ?
  The recommended clock frequency is between 1MHz and 20MHz, but the optimal frequency depends on the specific application and noise requirements. A higher clock frequency can improve throughput, but may also increase noise and power consumption.
