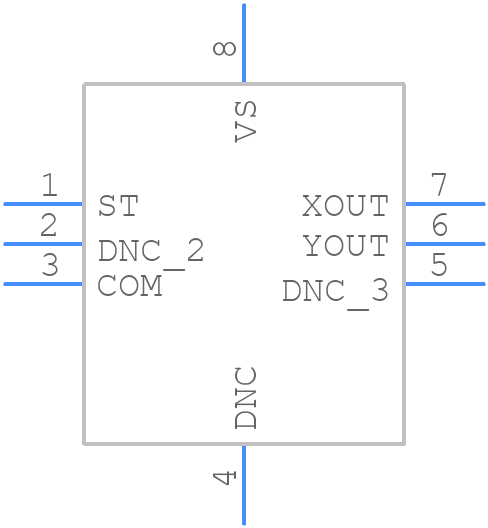

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for ADXL203CE
- Part Number ADXL203CE
- Manufacturer Analog Devices
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - LCC127P500X500X220-8N
- Released Date Jan 10, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
ADXL203CE Details
-
Manufacturer Part Number:
ADXL203CE
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
LCC
-
Package Description:
LCC-8
-
Pin Count:
8
-
Manufacturer Package Code:
E-8-1
-
Country Of Origin:
Philippines
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
