ADXL312WACPZ-RL - Analog Devices

Description: Accelerometers 3-axis 1.5-12g accel Digital Output

Download ADXL312WACPZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

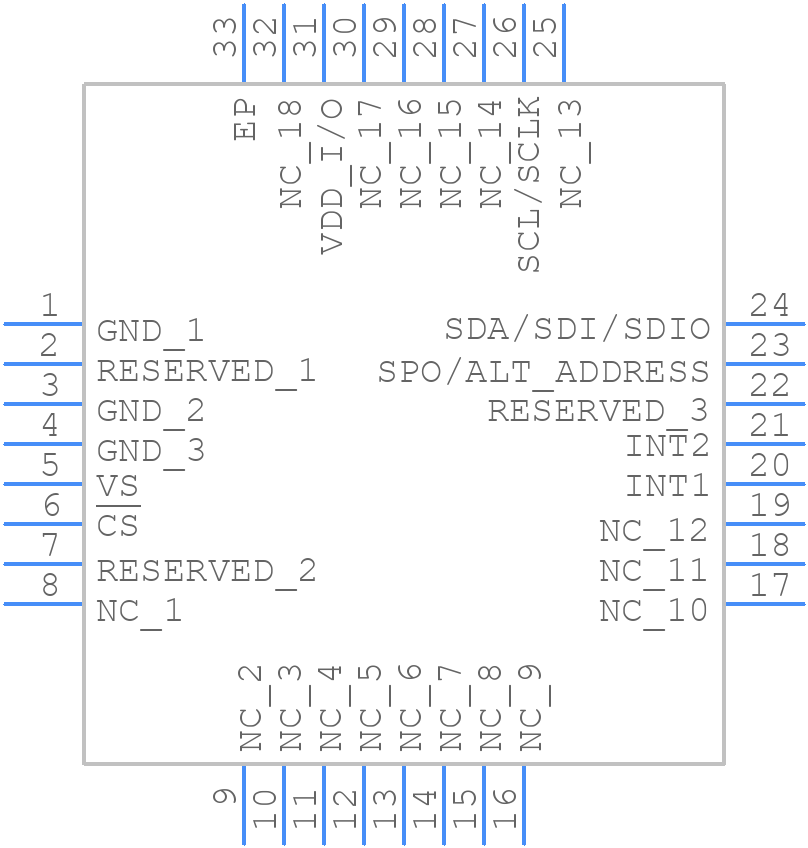

ADXL312WACPZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL312WACPZ-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-LEAD LFCSP [5X5X1.45]
click to zoom
3D Models
ADXL312WACPZ-RL - Analog Devices - 3D model - Quad Flat No-Lead - 32-LEAD LFCSP [5X5X1.45]
click to zoom

ADXL312WACPZ-RL Details

  • Manufacturer Part Number:

    ADXL312WACPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-17

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    9031.80.80.85

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

ADXL312WACPZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADXL312WACPZ-RL involves keeping the accelerometer away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connected to the accelerometer's pins. A 4-layer PCB with a dedicated ground plane is recommended.
  • The ADXL312WACPZ-RL does not require calibration. It is a self-contained accelerometer that provides a calibrated output. However, if you need to adjust the sensitivity or offset, you can use the built-in self-test feature or apply an external calibration signal.
  • The ADXL312WACPZ-RL has a maximum acceleration range of ±10g, ±5g, or ±2g, depending on the range selected. The default range is ±10g.
  • The ADXL312WACPZ-RL is rated for operation from -40°C to +125°C. However, the accuracy and sensitivity of the accelerometer may degrade at high temperatures. It's recommended to consult the datasheet and application notes for more information on high-temperature operation.
  • The ADXL312WACPZ-RL has an analog output that can be connected to an analog-to-digital converter (ADC) in a microcontroller. The output voltage range is 0.5V to 4.5V, and the output impedance is 32kΩ. You can use a voltage divider or an op-amp to condition the signal if necessary.
