ADXL312WACPZ - Analog Devices

Description: Accelerometers 3-axis 1.5-12g accel Digital Output

Download ADXL312WACPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

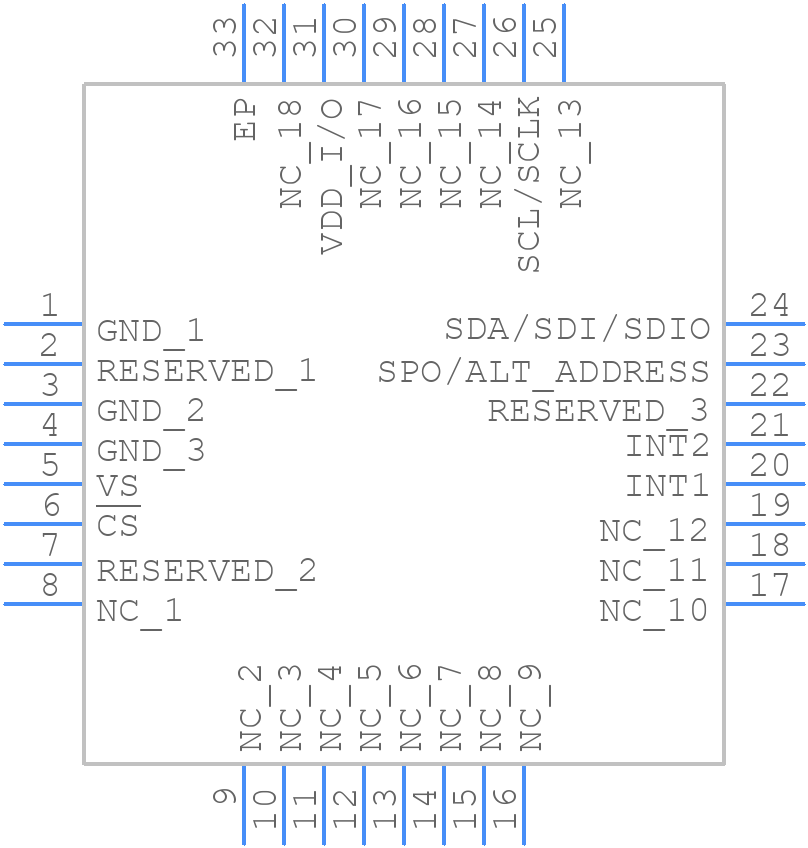

ADXL312WACPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL312WACPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ADXL312WACPZ
click to zoom
3D Models
ADXL312WACPZ - Analog Devices - 3D model - Quad Flat No-Lead - ADXL312WACPZ
click to zoom

ADXL312WACPZ Details

  • Manufacturer Part Number:

    ADXL312WACPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-17

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    9031.80.80.85

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

ADXL312WACPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADXL312WACPZ involves keeping the accelerometer away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connected to the accelerometer's pins.
  • Calibration of the ADXL312WACPZ involves applying known accelerations to the device and measuring the output. The device can be calibrated using a shaker table or a centrifuge, and the calibration process typically involves applying a series of known accelerations and measuring the output voltage.
  • The ADXL312WACPZ has a maximum acceleration range of ±10g, ±5g, or ±2g, depending on the range selected. The device can measure accelerations up to 10g, but the maximum range is limited by the power supply voltage and the output voltage swing.
  • The ADXL312WACPZ can be interfaced with a microcontroller using an analog-to-digital converter (ADC). The accelerometer's output voltage is proportional to the acceleration, and the microcontroller can read the output voltage using an ADC. The microcontroller can then convert the output voltage to a digital acceleration value.
  • The power consumption of the ADXL312WACPZ is typically around 1.8mA at 3.3V supply voltage. However, the power consumption can vary depending on the output data rate and the power mode selected.
