ADXL316WBCSZ-RL7 - Analog Devices

Description: Accelerometer Triple ±16g 3V 50mV/g to 64mV/g Automotive 12-Pin LFCSP EP T/R

Download ADXL316WBCSZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

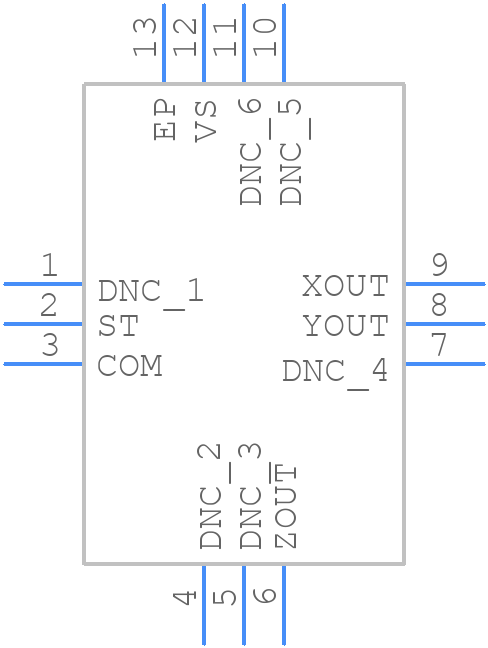

ADXL316WBCSZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL316WBCSZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ADXL316WBCSZ-RL7
click to zoom
3D Models
ADXL316WBCSZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - ADXL316WBCSZ-RL7
click to zoom

ADXL316WBCSZ-RL7 Details

  • Manufacturer Part Number:

    ADXL316WBCSZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    CS-12-3

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    9031.80.80.85

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N12

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADXL316WBCSZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADXL316WBCSZ-RL7 involves keeping the accelerometer away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connected to the device. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • Calibration of the ADXL316WBCSZ-RL7 involves applying known accelerations to the device and measuring the output. A calibration procedure can be implemented using a shaker table or a centrifuge to apply controlled accelerations. The device can also be calibrated using a self-test feature.
  • The ADXL316WBCSZ-RL7 can measure accelerations up to ±16g, but it's recommended to operate within the specified range of ±10g for optimal performance and accuracy.
  • The ADXL316WBCSZ-RL7 can be interfaced with a microcontroller using a SPI or I2C interface. The device requires a 1.8V to 3.6V power supply, and the interface lines should be properly terminated and filtered to minimize noise.
  • The typical power consumption of the ADXL316WBCSZ-RL7 is 140 μA at 2.5V, but it can vary depending on the output data rate and the interface mode. The device also has a low-power mode that can reduce the power consumption to 2 μA.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADXL316WBCSZ-RL7 Overview

Use the download button to access the ADXL316WBCSZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADXL3, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
