ADXL316WBCSZ - Analog Devices

Description: Accelerometers Low G XL Noise Cancellation

Download ADXL316WBCSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

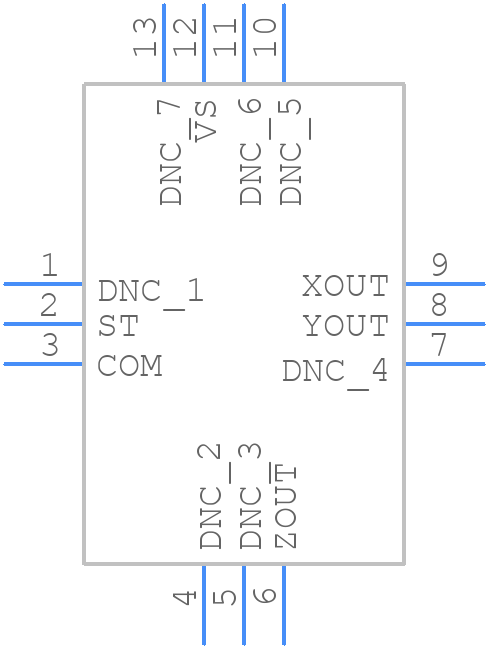

ADXL316WBCSZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADXL316WBCSZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UD-QFN-12_2021
click to zoom
3D Models
ADXL316WBCSZ - Analog Devices - 3D model - Quad Flat No-Lead - UD-QFN-12_2021
click to zoom

ADXL316WBCSZ Details

  • Manufacturer Part Number:

    ADXL316WBCSZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    CS-12-3

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    9031.80.80.85

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N12

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADXL316WBCSZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADXL316WBCSZ involves keeping the accelerometer away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connected to the accelerometer's pins.
  • Calibration of the ADXL316WBCSZ involves applying known accelerations to the device and measuring the corresponding output voltages. The device can be calibrated using a shaker table or a centrifuge, and the calibration process typically involves applying a series of known accelerations and recording the output voltages.
  • The ADXL316WBCSZ has a maximum acceleration range of ±16g, but it can be configured to measure accelerations up to ±50g with reduced sensitivity.
  • The ADXL316WBCSZ is rated for operation from -40°C to 125°C, but its accuracy and sensitivity may degrade at high temperatures. It's recommended to consult the datasheet and application notes for guidance on using the device in high-temperature applications.
  • Noise and vibrations can be filtered out using digital filters, such as low-pass filters or band-pass filters, or using analog filters, such as RC filters or active filters. The choice of filter depends on the specific application and the frequency range of interest.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADXL316WBCSZ Overview

Use the download button to access the ADXL316WBCSZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADXL3, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
